2003 Microcut BNC-1860 CNC/Teach-In Lathe
Original price was: $15,000.00.$13,636.00Current price is: $13,636.00. +GST
Working order.
Need to move on asap as new machine is on the way.
Available immediately.
Description

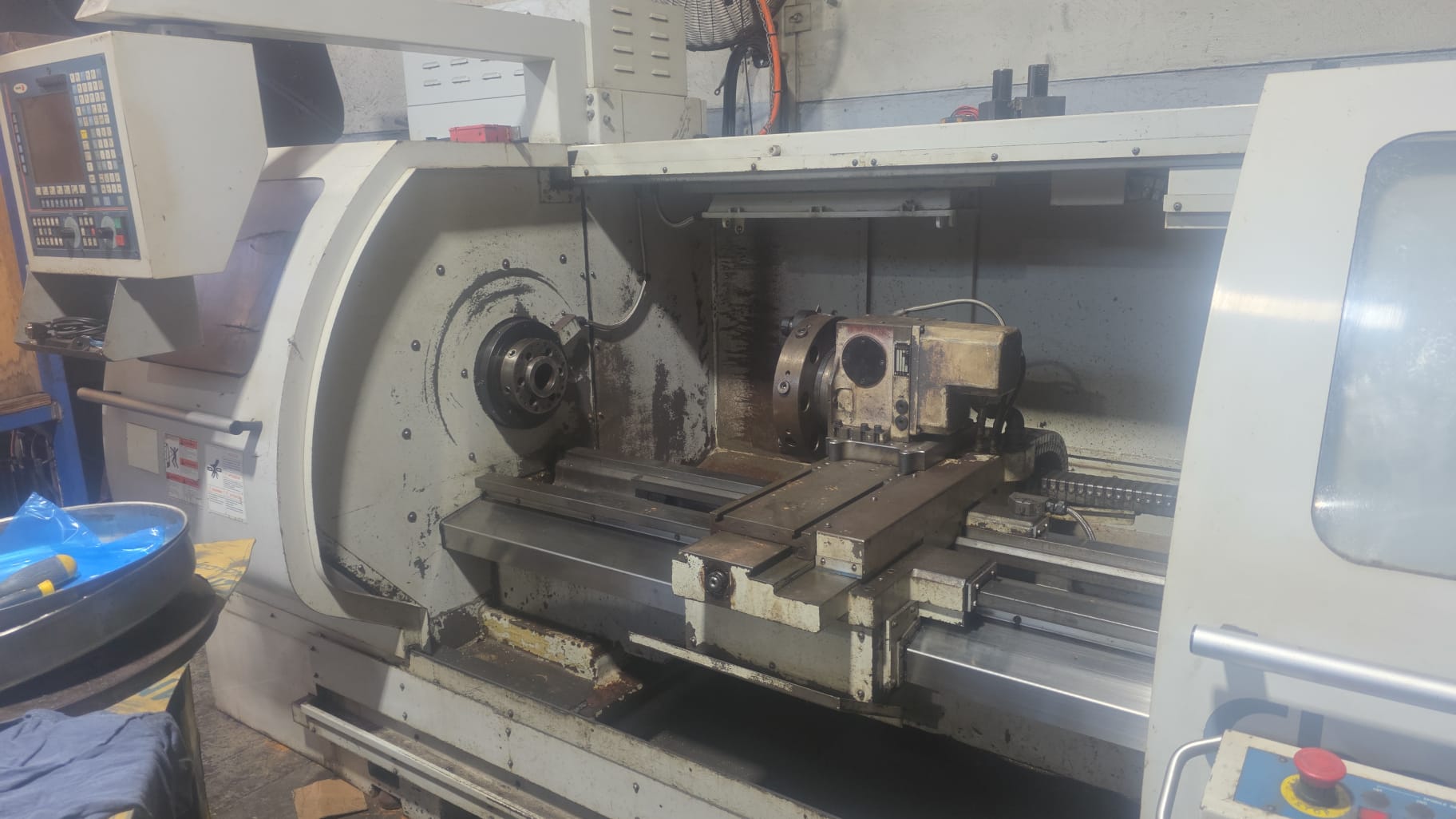

Model Type: BNC-1860 Flat-Bed CNC / Teach-In Lathe
Manufacture Date: January 2003
Machine Weight: 3,150 kg

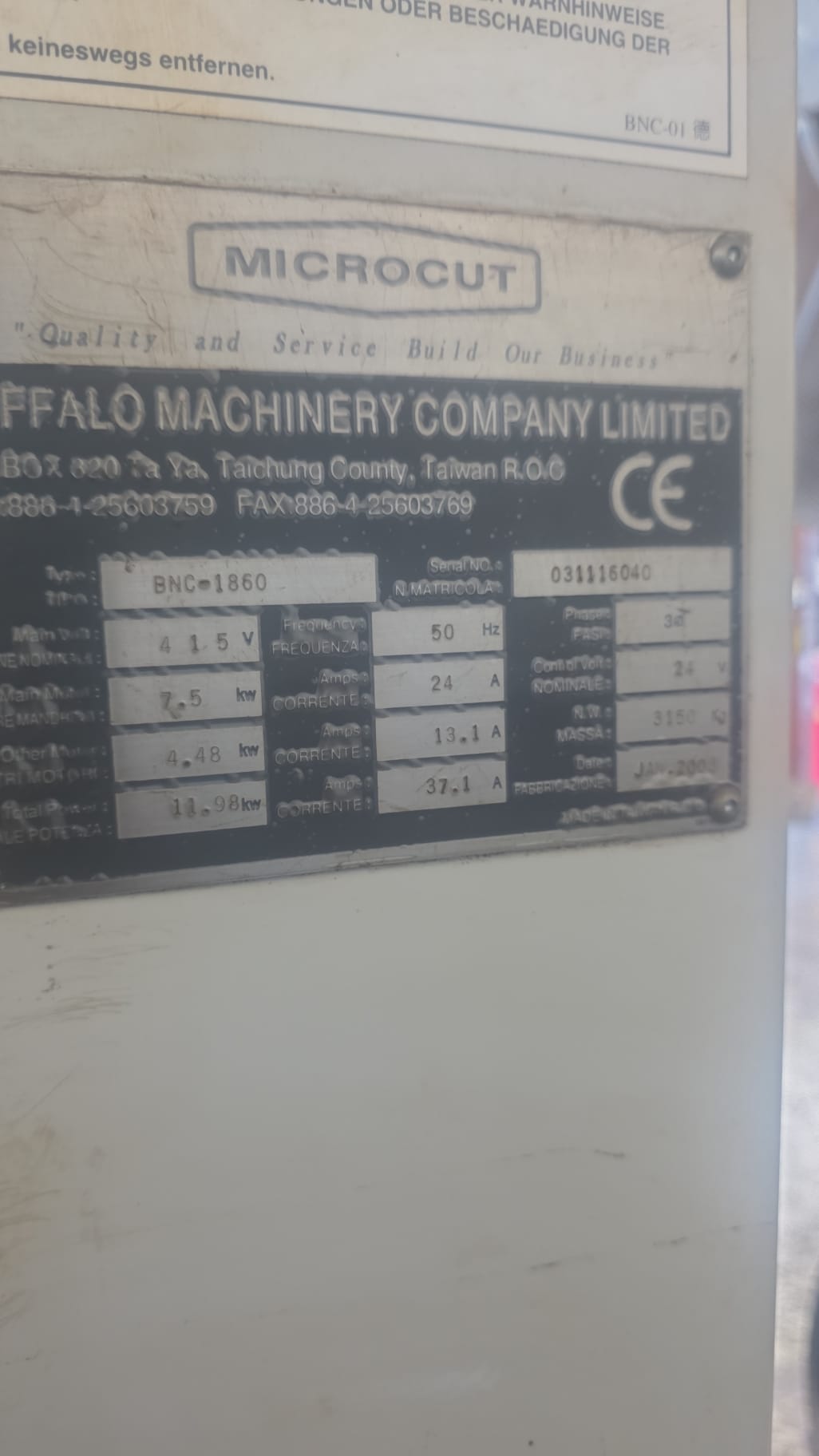

Serial Number: 031116040
Power Requirements: 3-Phase / 60 Hz
Flat-bed design
475mm Swing over bed
1500mm Distance between centers

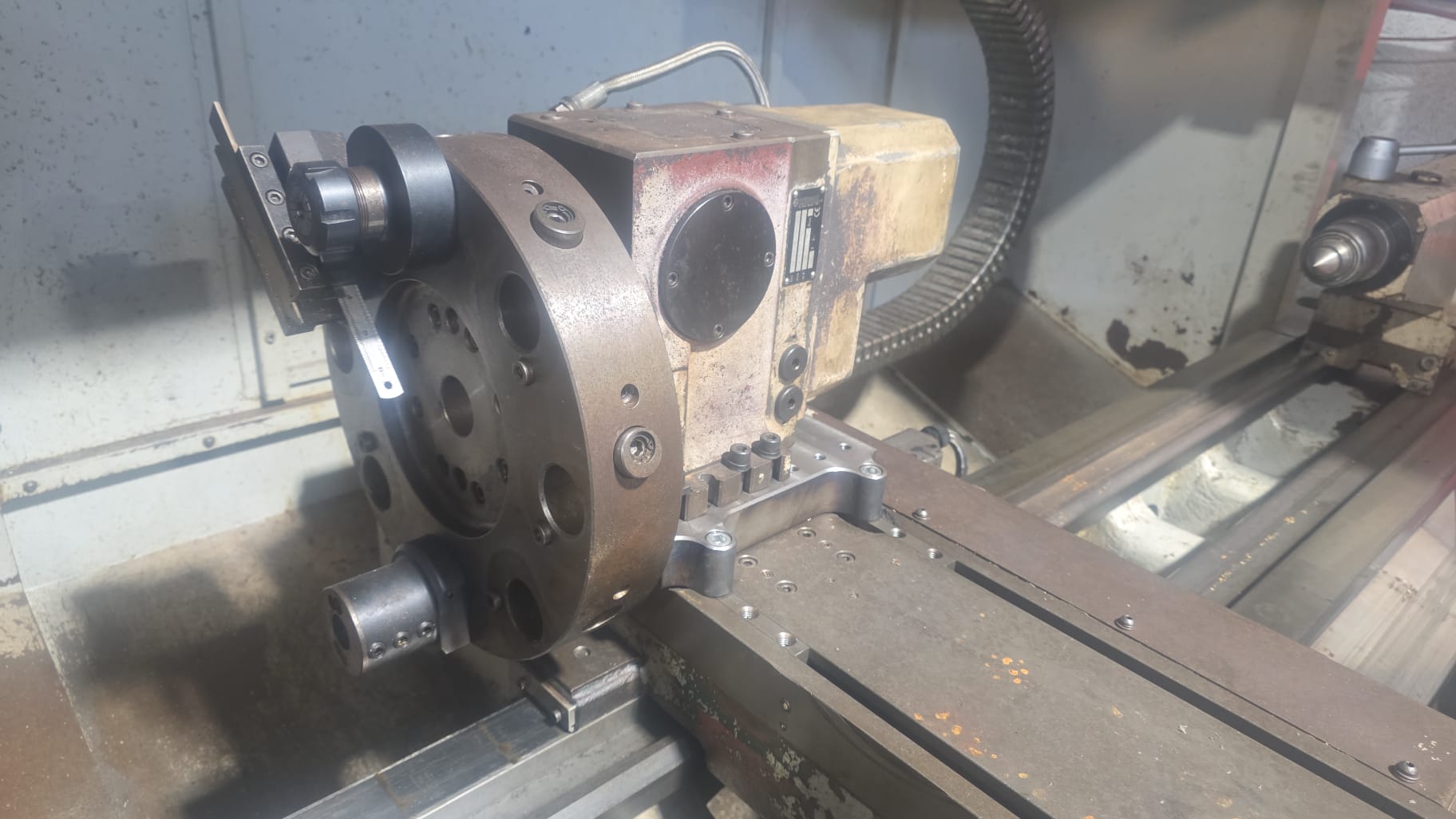

Automatic tool turret
Left hand, right hand, collet chuck, parting blade and other
holders included. – takes standard 20mm high turning bars.
No turning tools provided
No chuck provided – takes standard 6 pin locking chucks.
No chip conveyor – only a submerged coolant bed(a tray you can
pull out and clean)
The machine holds tolerance and is very rigid
for what it can spin.

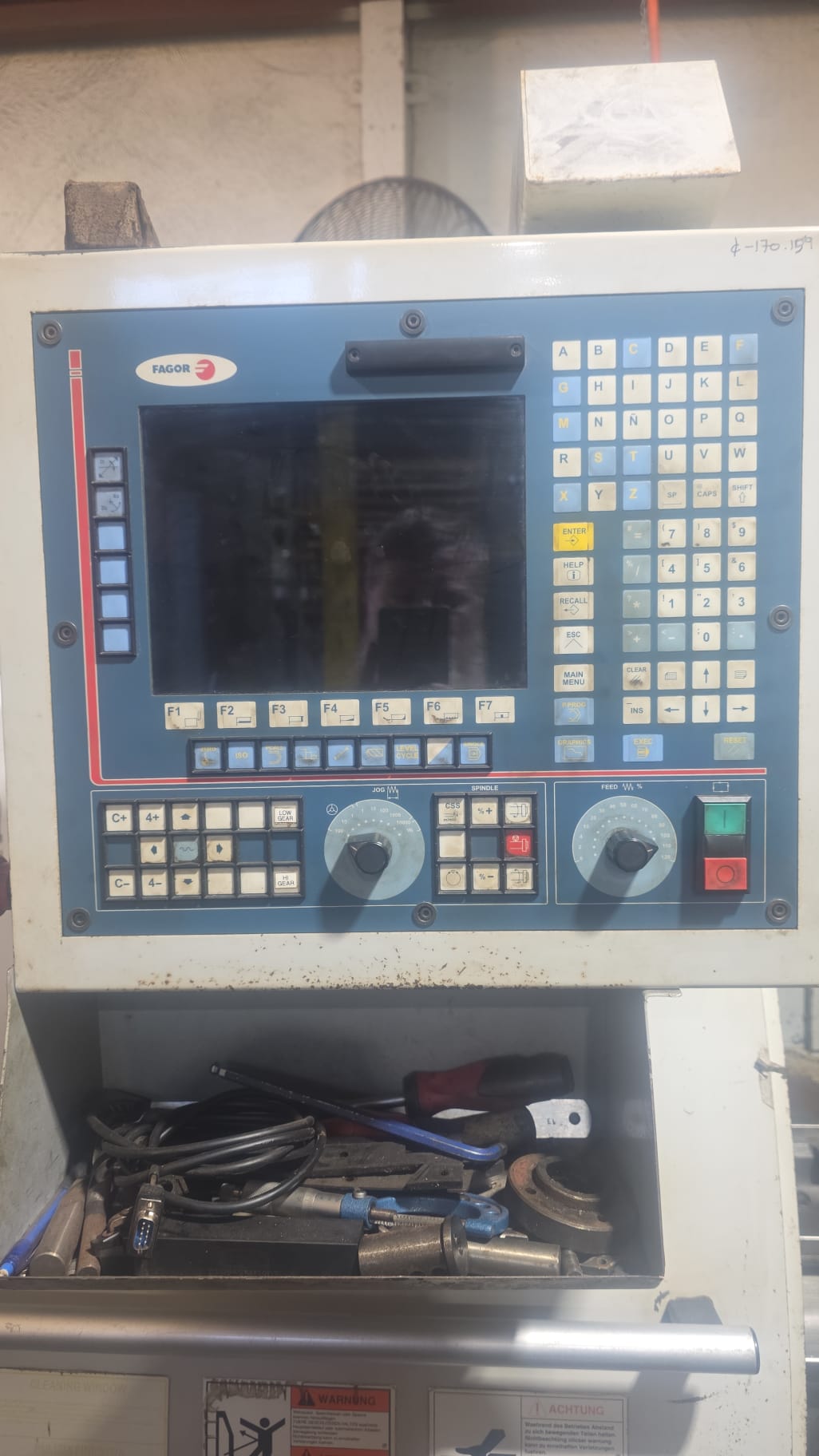

The machine has a full on teach-in programming
controller so no computer is needed,
Thats the best thing about this machine – and
is very responsive and easy to set up, bore a part without going to the
computer and programming a full tool path.
Most of the manuals are available, the quick
each, user manual and trouble shooting manual.
