DASHIN CHAMPION 2500VS Centre Lathe TRT#64

Description

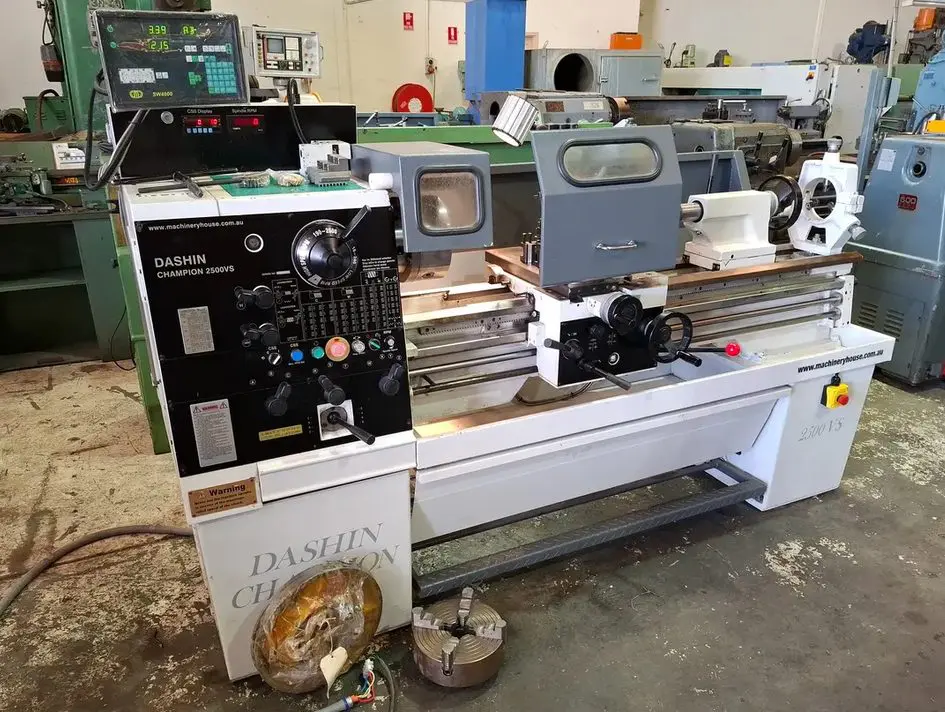

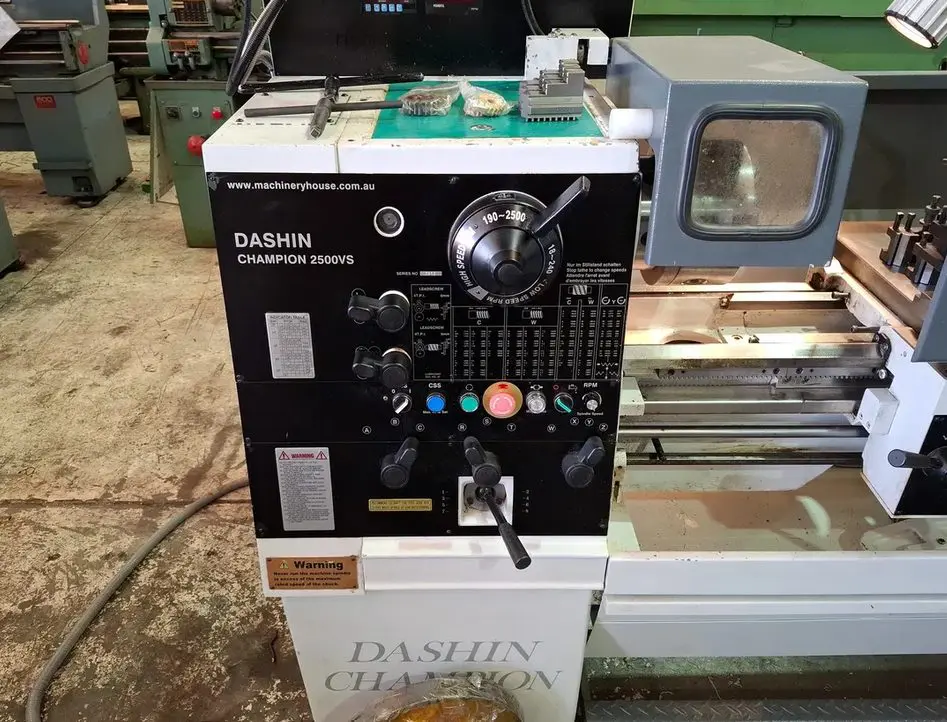

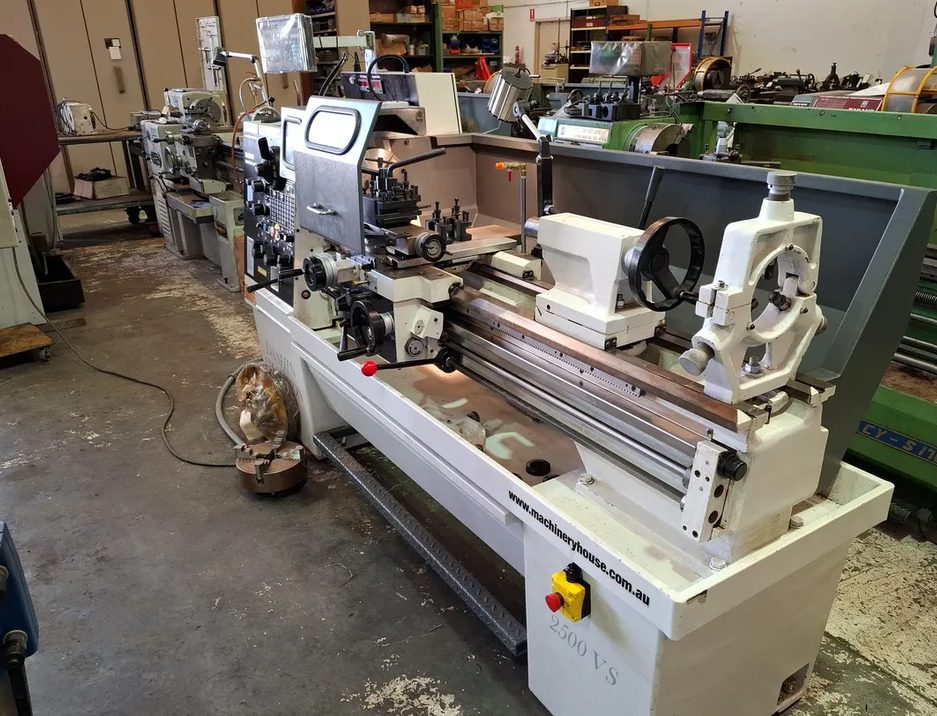

This is a Taiwanese-built variable speed centre lathe, manufactured by Jesco. This example is fitted with a Carmar SW4000 two-axis digital readout, quick change toolpost, and the standard variable speed control system with constant surface speed (CSS) function, allowing the spindle to hold a consistent cutting speed as diameter changes during facing or taper work.

Good working order and includes both the standard 3-jaw and 4-jaw chucks, fixed & travelling steadies

Specifications

• Swing over bed: 390mm
• Swing in gap: 610mm
• Swing over cross-slide: 240mm
• Distance between centres: 1250mm
• Spindle bore: 55mm
• Centre height: 190mm
• Bed width: 270mm
• Spindle nose: D1-6
• Headstock spindle taper: MT6
• Tailstock taper: MT4
• Cross slide travel: 230mm
• Compound slide travel: 120mm
• Leadscrew type: metric
• Metric cross feed: 0.02 – 0.5mm/rev
• Metric longitudinal feed: 0.040 – 1.00mm/rev
• Metric thread pitch range: 39 steps, 0.2 – 14mm
• Imperial thread range: 45 steps, 2 – 72 TPI
• Spindle speed: variable, 18 – 2500rpm (high/low range selector)
• Motor power: 5.5kW / 7.5hp
• Voltage: 415V
• Nett weight: 1500kg (approx.)

Included with this machine

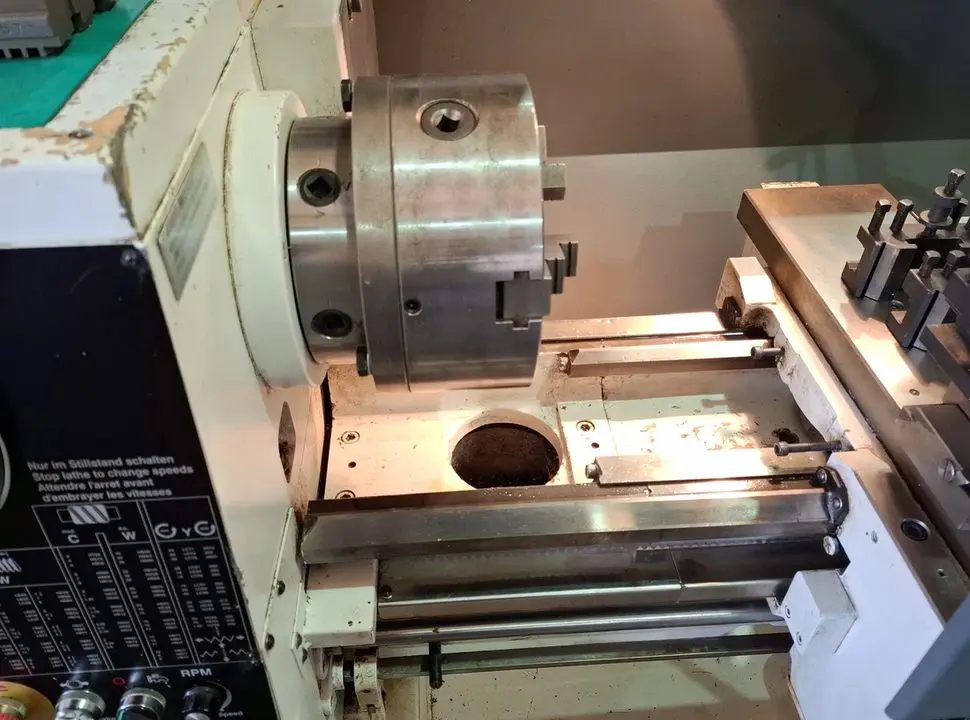

• 3-jaw and 4-jaw chucks
• Quick change toolpost
• Fixed & travelling steadies

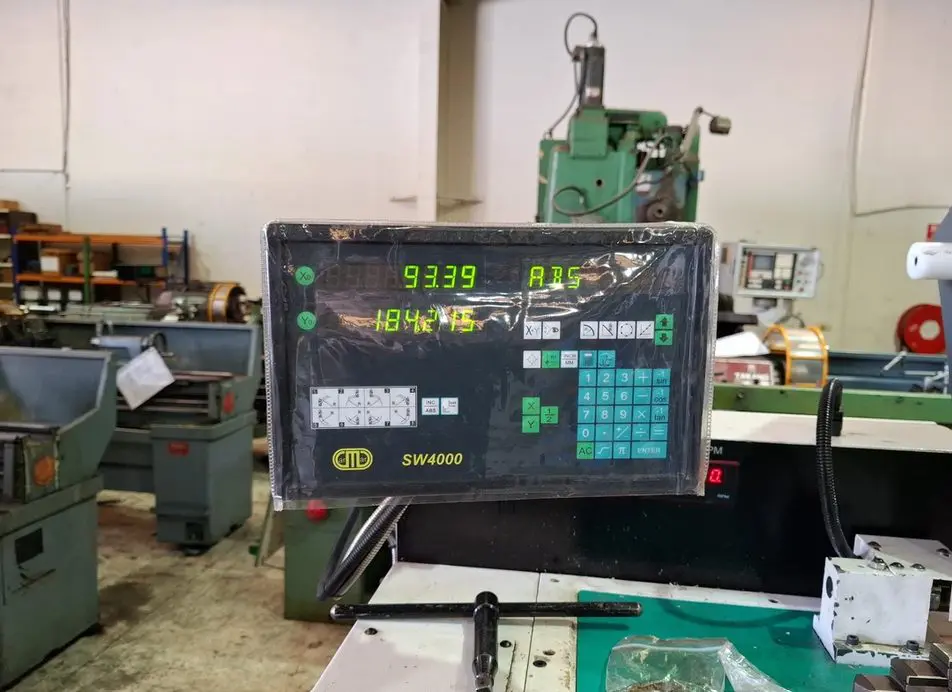

• Digital readout (Carmar SW4000)
• Coolant system
• Work light
