Gleason 12” Straight Bevel Gear Generator TRT#74

Description

A genuine Gleason — the company that invented the bevel gear industry

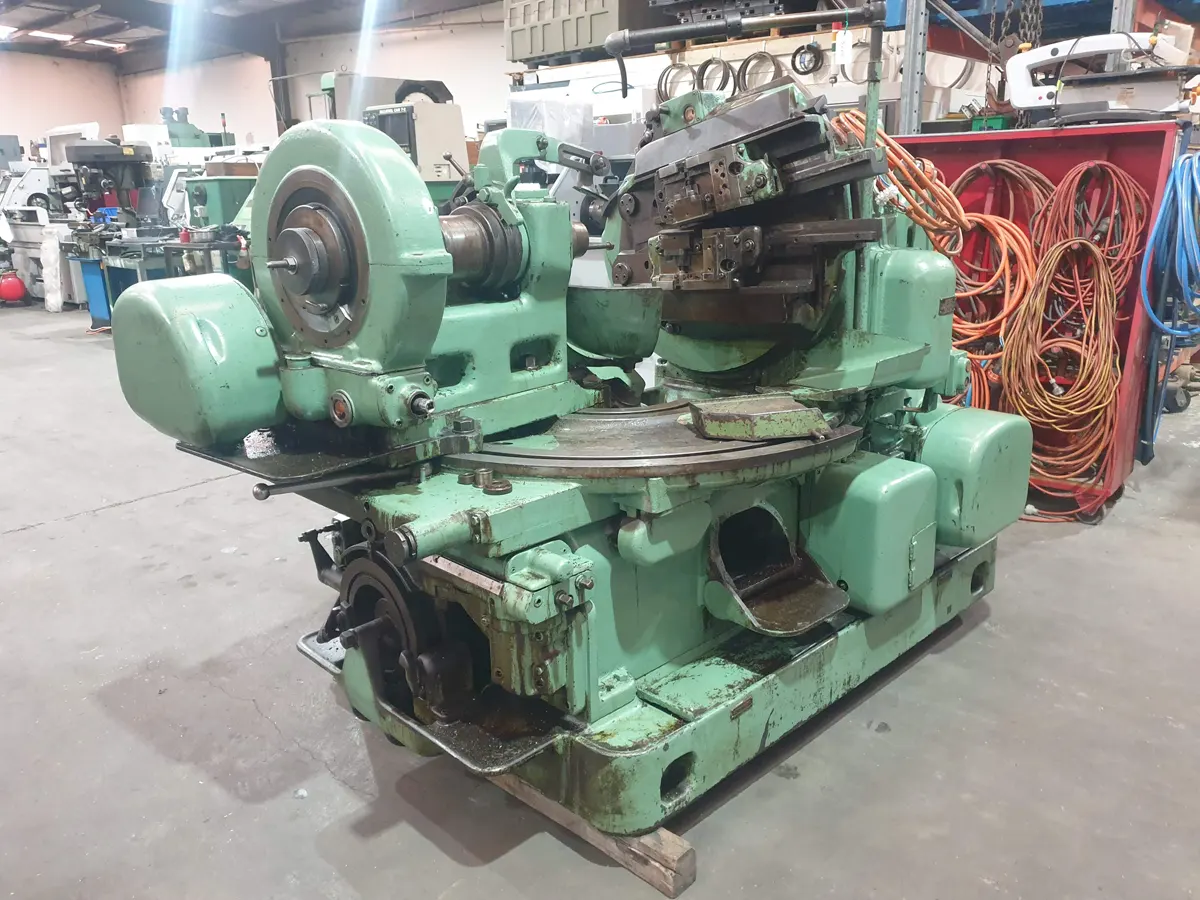

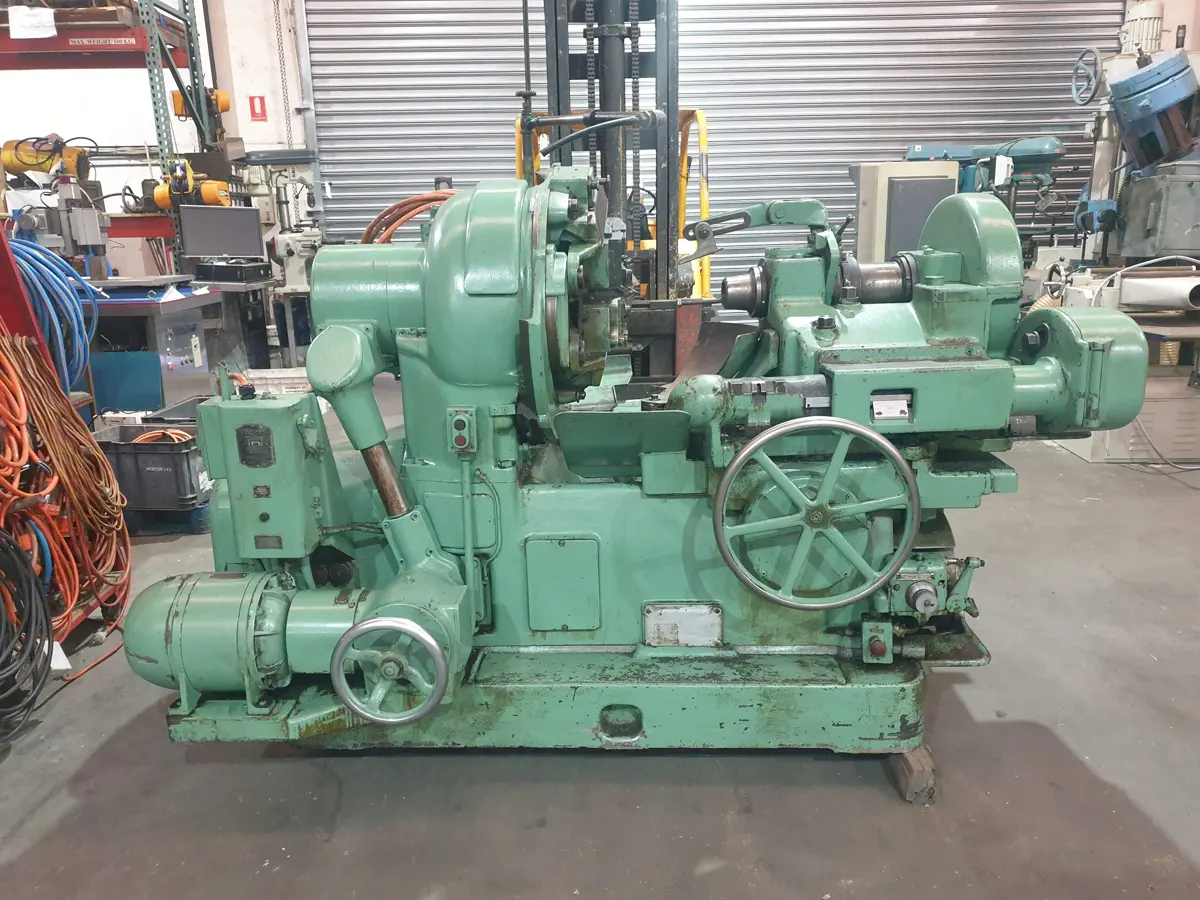

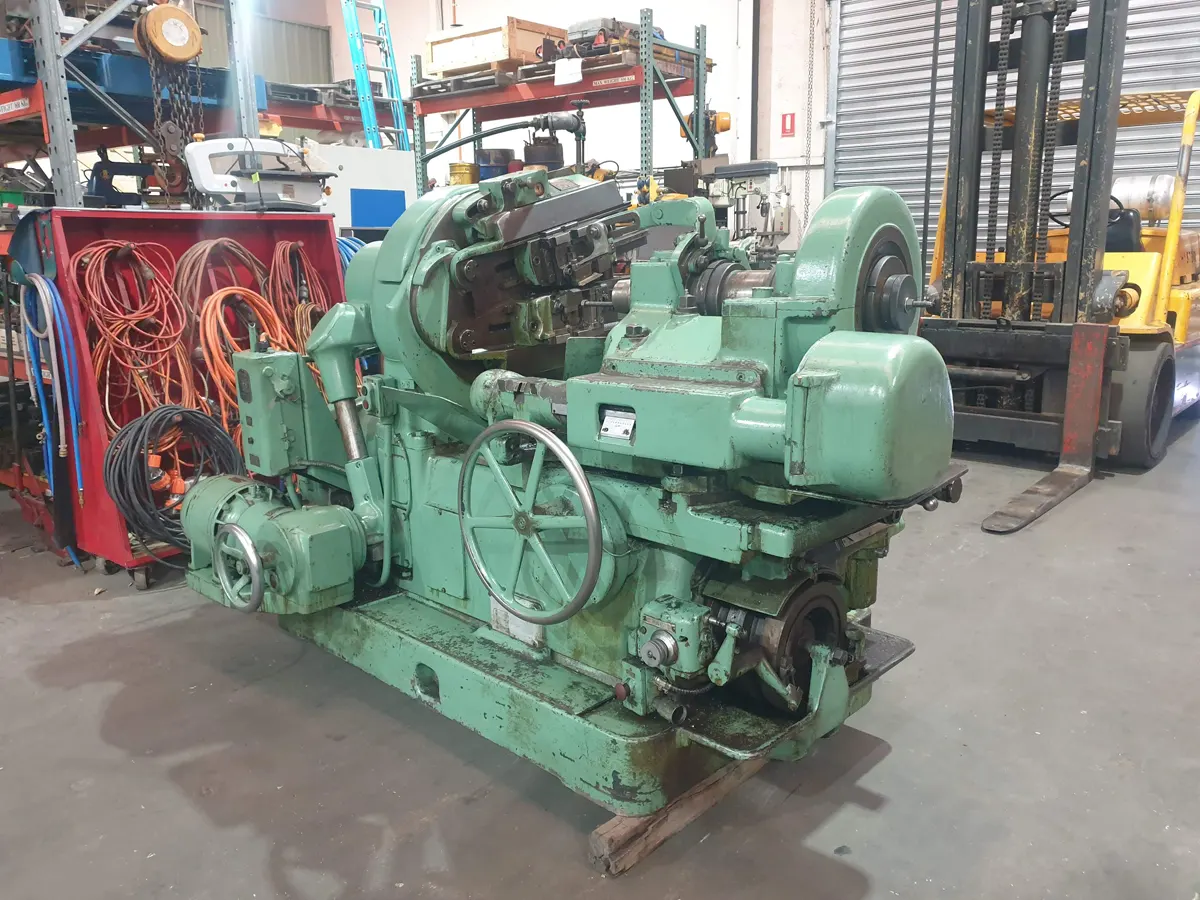

Here we have for sale a Gleason 12″ Straight Bevel Gear Generator. Gleason invented the first bevel gear planer in 1874, creating the bevel gear industry itself, and remains a global leader in gear manufacturing technology to this day. This gear generator is built as a complete unit for rough and finish cutting large or small quantities of straight bevel gears, with a capacity for gears not exceeding 3 diametrical pitch, 10-1 ratio, and a cone distance of 8½″ (215 mm).

• Largest Cone distance 8 1/2″ (215mm)
• Greatest Pitch Angle 90º
• Extreme Ratio 10-1
• Largest Pitch Dia 1-1 ratio 12″  (300mm)
• Largest Pitch 3DP
• Longest Face 3 1/2” (89mm)
• Length of Stroke 1/2 – 3 3/4” (13mm to 95mm)

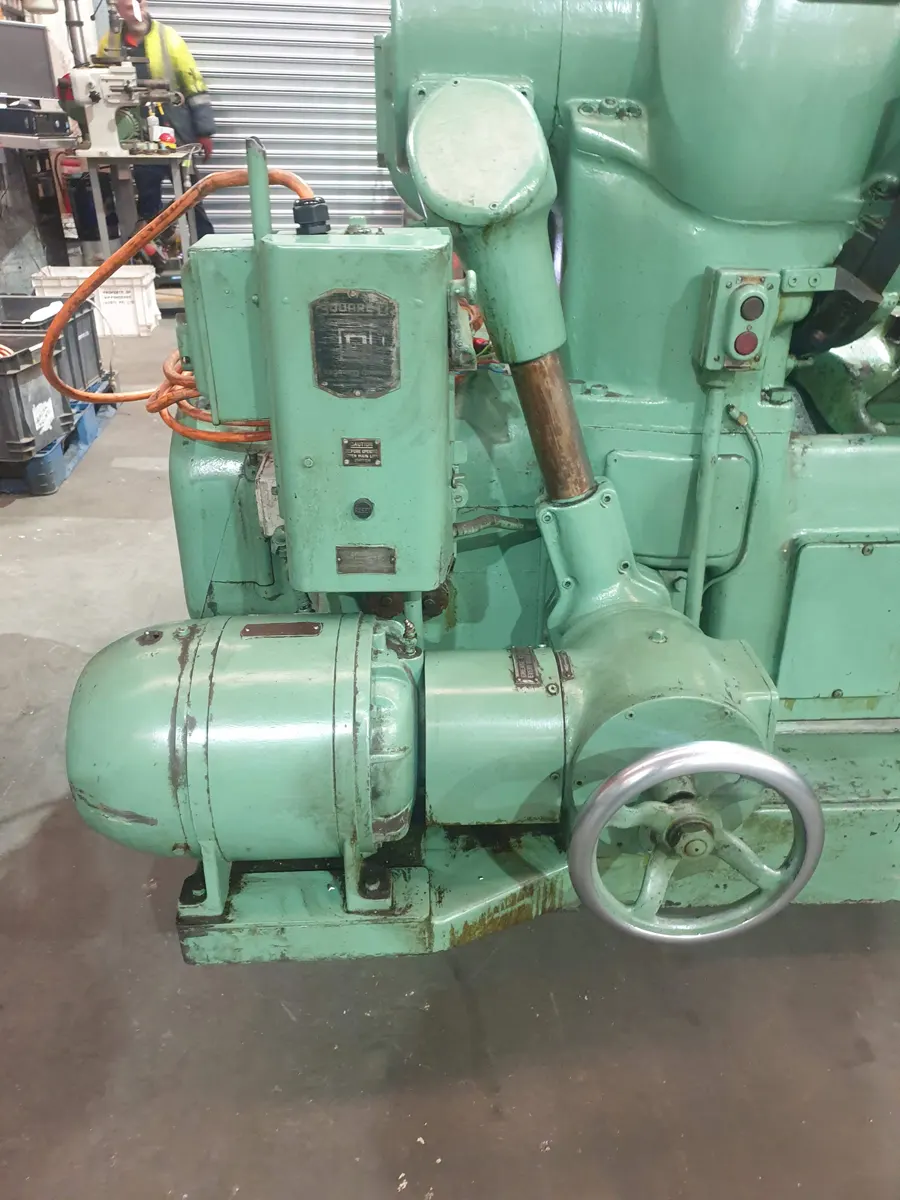

• Motor Power 3hp 415Volt
• Machine transport Dimensions 2.3m x 1.6m x 1.6m High
• Machine Weight 3.7 Tonne approx
• Set of change gears included
• full coolant system
