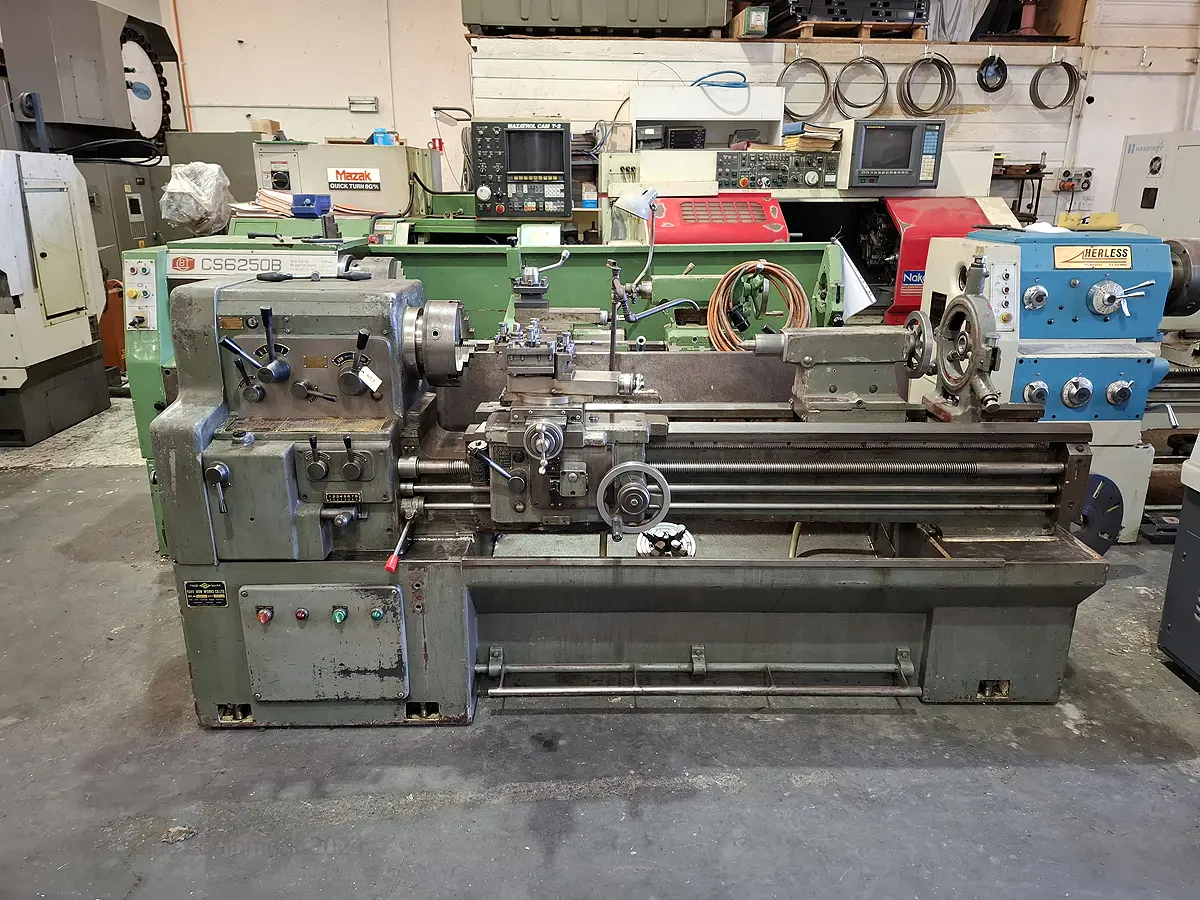

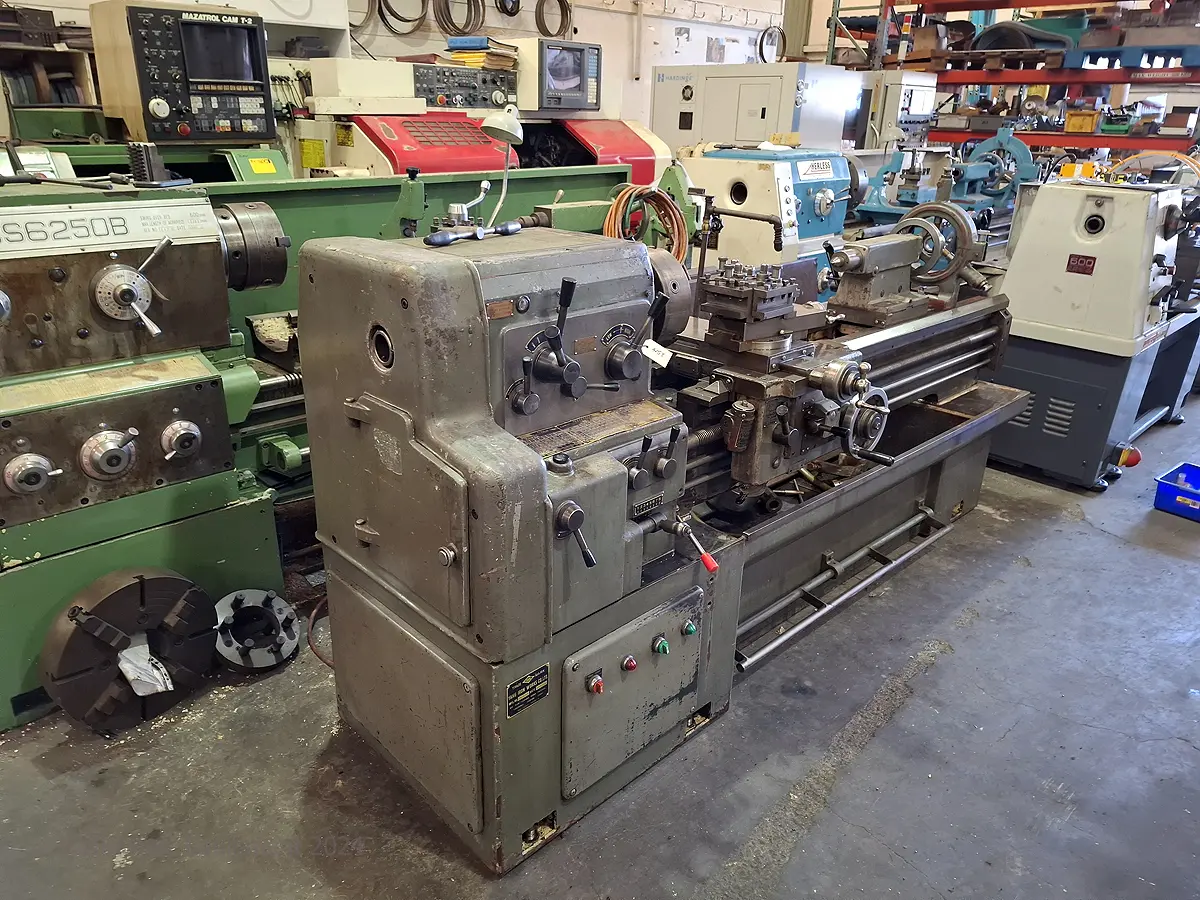

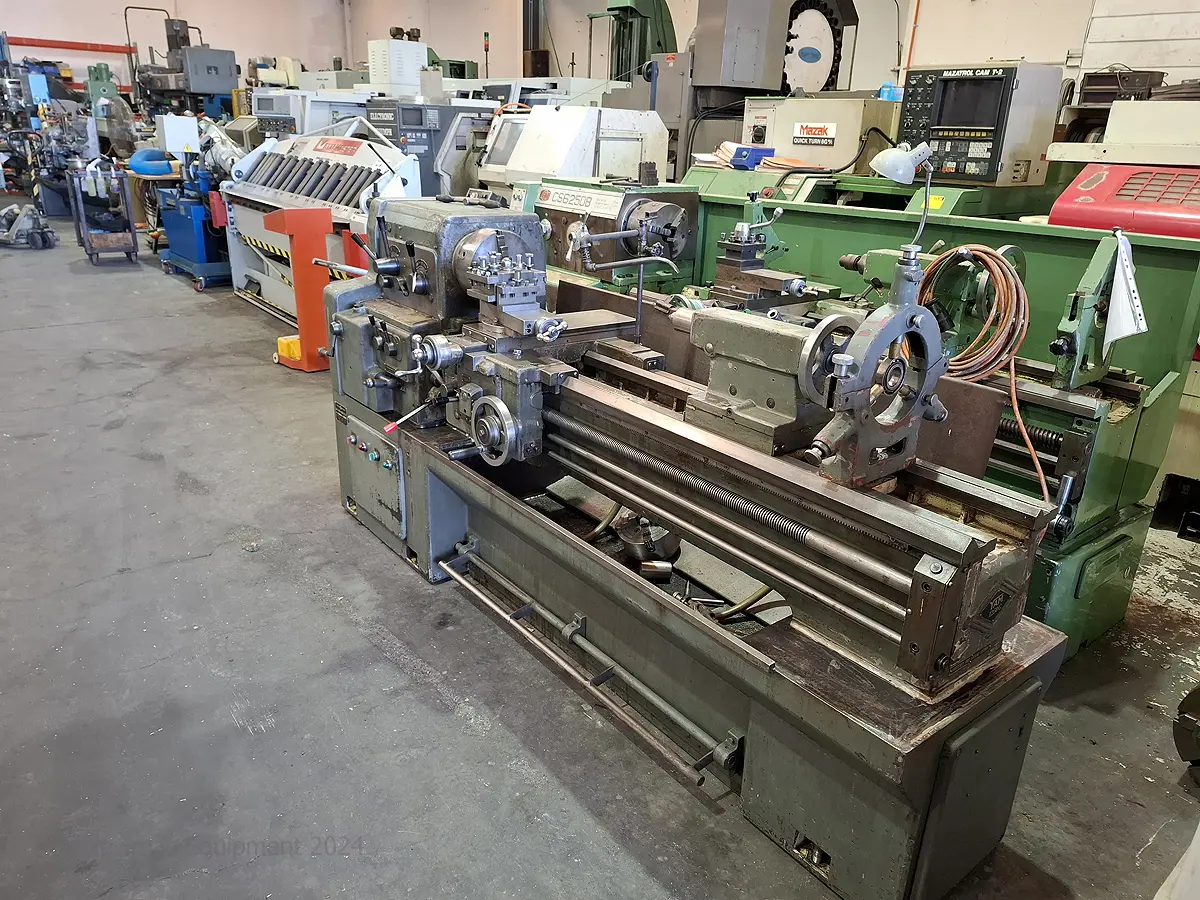

Yang Iron 420 x 1500 Centre Lathe TRT#66

Description

Yang Iron Works has been manufacturing lathes in Taiwan since the 1940s, building a reputation for solidly engineered, high-speed precision machines used widely across engineering workshops worldwide. This 420 x 1500 offers a big swing and long bed length, well suited to larger shaft and general engineering work. Fitted with fixed and travelling steadies, a coolant system and quick change tool post, it’s set up ready for production use.

Specifications are as follows

• Swing Over Bed 420mm approx.
• Swing Over Saddle 240mm
• Swing in Gap 600mm approx.
• Distance Btw Ctrs 1500mm
• Spindle Bore 50mm
• Spindle Mount A Mount
• Spindle Speeds 12 Speed 32 – 1800rpm
• Motor Hp/Kw 5hp/3.7kw
• Power requirements, 3 phase 415 volts
• Overall Dimensions 2.6m x 0.9m x 1250mm high
• Transport Weight 2.5 Tonne
• Year of Manufacture 1973

Features

• Imperial lead screw & dials
• Gap bed

Accessories

• 3 & 4 jaw chucks

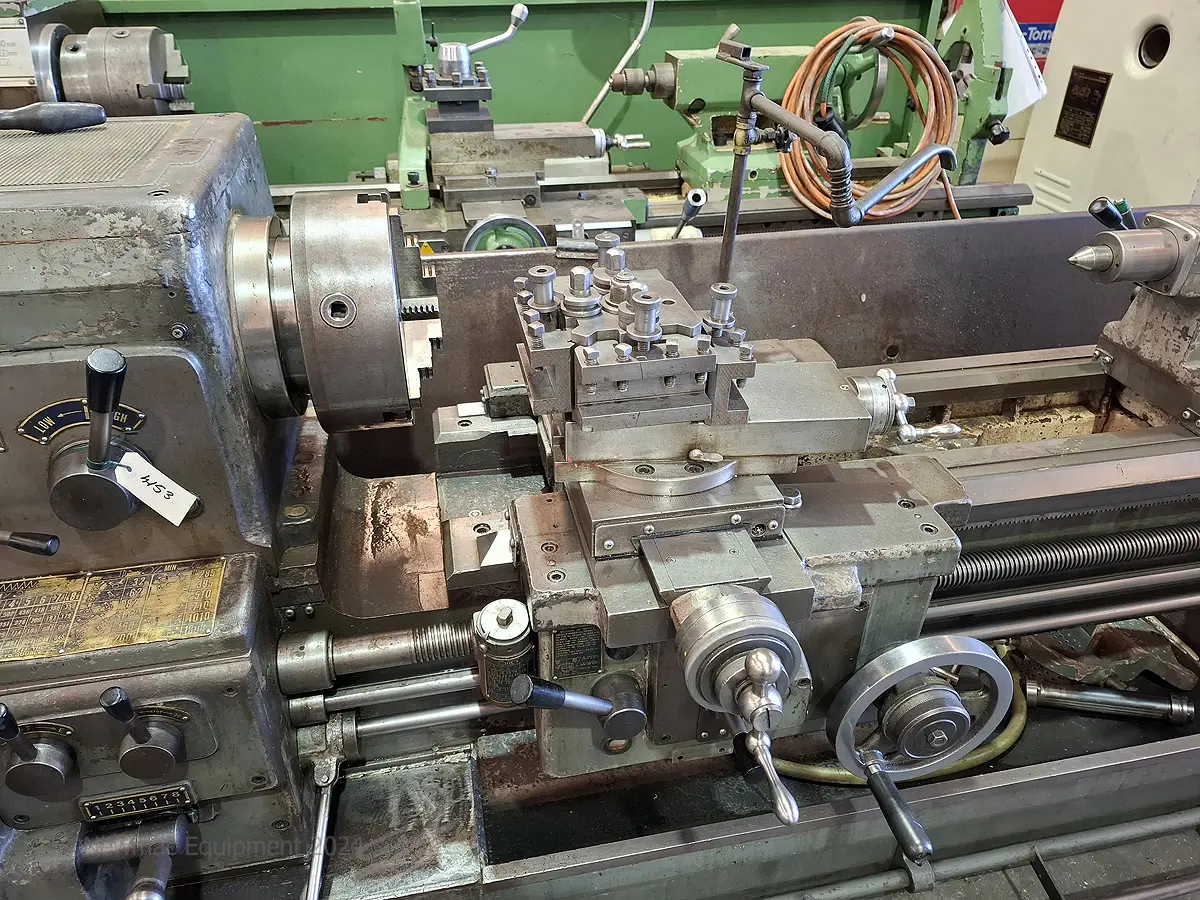

• Quick change tool post
• Fixed & travelling steadies
• Thread chasing dial
• Foot brake
• Coolant system
