Yunnan CY-6250B Centre Lathe TRT#80

Description

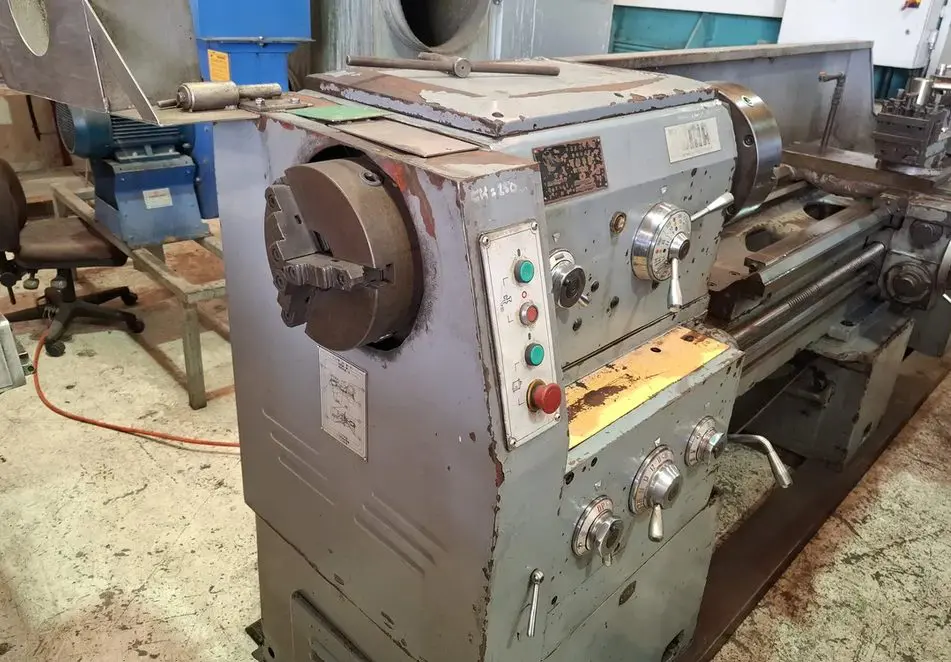

This Yunnan CY6250B centre lathe was manufactured in China by Yunnan Machine Tool Factory & is a gap bed lathe in used condition, sold as is. It’s fitted with a second chuck mounted on the rear of the spindle, a configuration typically used for handling long bar stock or pipe fed through the hollow spindle bore.

Specifications are as follows

Gap bed
Swing over bed 500mm
Swing over saddle approx. 290mm
Swing in gap approx. 700mm
Distance between centres 2000mm
Spindle bore 80mm
Spindle mount Camlock D1-11
Spindle speeds 9 to 1600rpm (24 speeds)
Machine voltage 415 volt
Overall dimensions 3.7m x 1.2m x 1.4m high
Approx. weight 3 tonnes
Metric dials

Feature/comes with

3 jaw chuck
Quick change tool post
Coolant system fitted
Taper turning attachment included

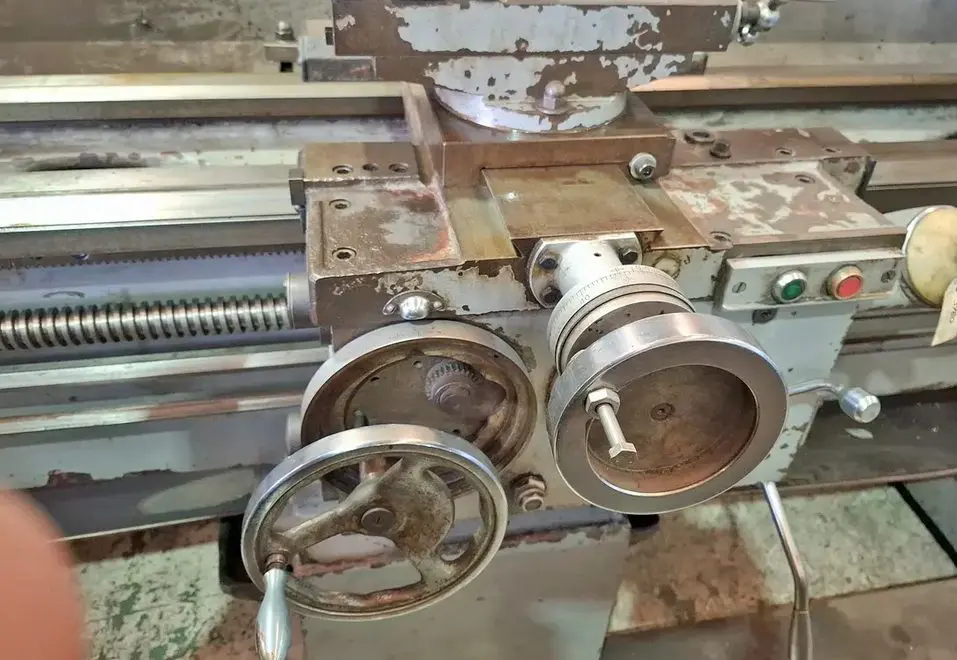

Please note the following faults — the transverse graduation dial is missing (see photos) & the shaft on the handle is bent, however the transverse action still works. A taper turning attachment is included but is missing the clamp & connecting shaft. Rapid traverse button does not work.
