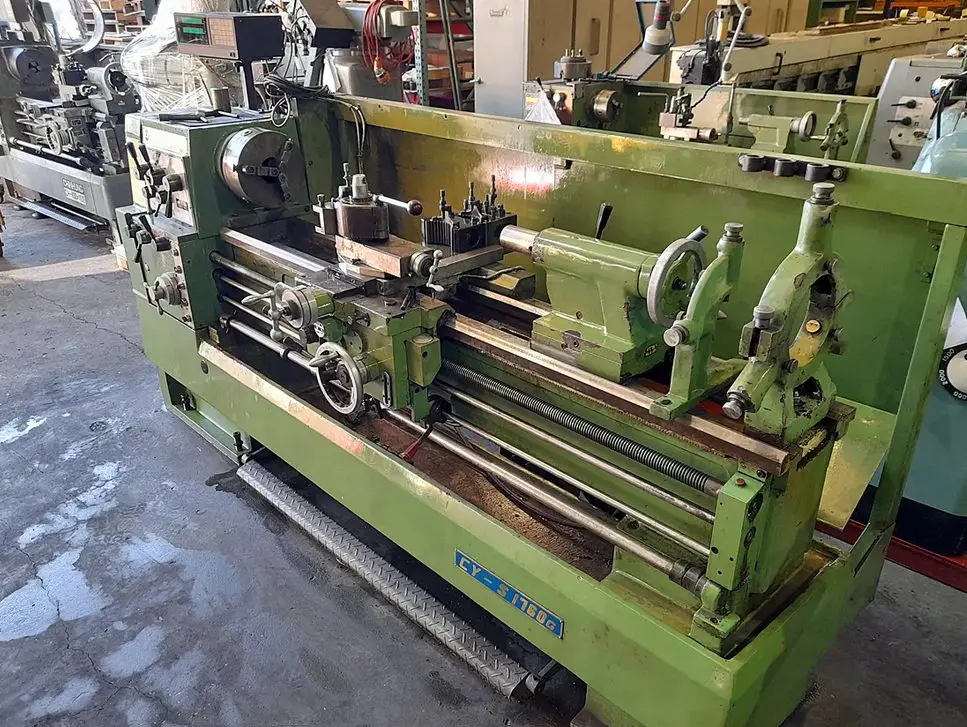

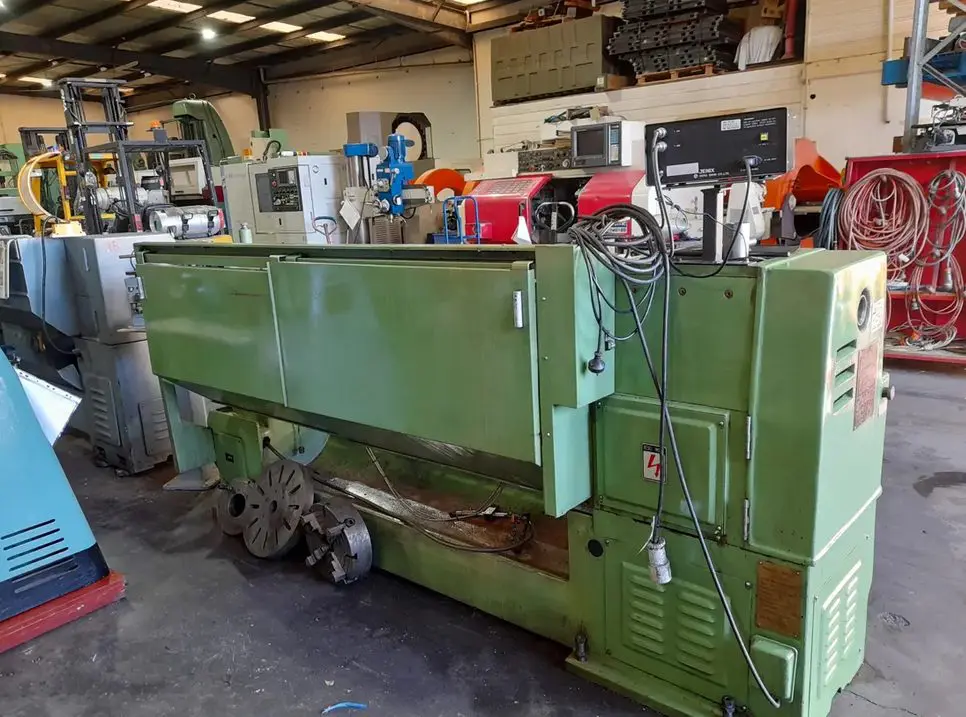

Yunnan CY S1760G Centre Lathe TRT#79

Description

This Yunnan CY S1760G comes from Yunnan CY Group, established in 1961 and one of China’s longer-running lathe manufacturers, exporting to over 60 countries. We’ve sold a number of these machines over the years and have consistently found them to be solid, reliable performers in workshop use. Well equipped for general use, it’s fitted with a tested Jenix 2-axis digital readout, quick change tool post, thread chasing dial, and a working foot brake — plus both fixed and travelling steadies for longer work.

Specifications are as follows

• Swing Over Bed 410mm
• Swing Over Saddle 230mm
• Swing in Gap Approx 640mm
• Distance Btw Ctrs 1.5m
• Spindle Bore 58mm
• Spindle mount Camlock D1-6
• Spindle Speeds 20 to 2000 rpm
• Power requirements 3 phase, 415 volt
• Overall dimensions 2.7m x 1.05m x 1.6m high
• Approx. weight 2 tons
• The lathe features an imperial lead screw, but dials both metric & imperial divisions

Accessories

• 3 & 4 Jaw chuck
• Dog plate for turning between centres

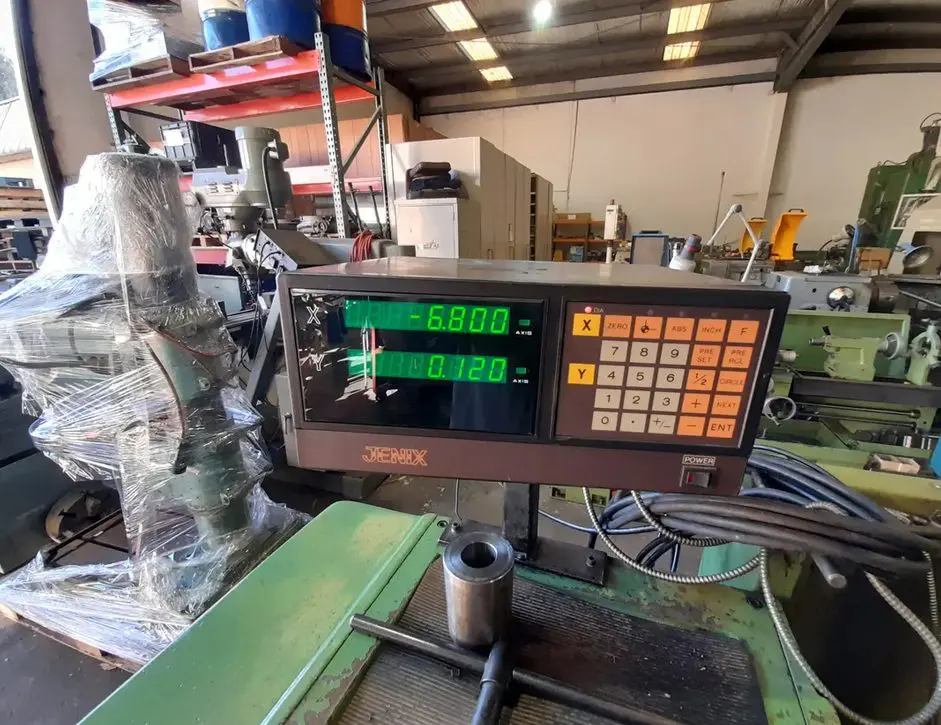

• Jenix 2 axis digital read out (tested & working)

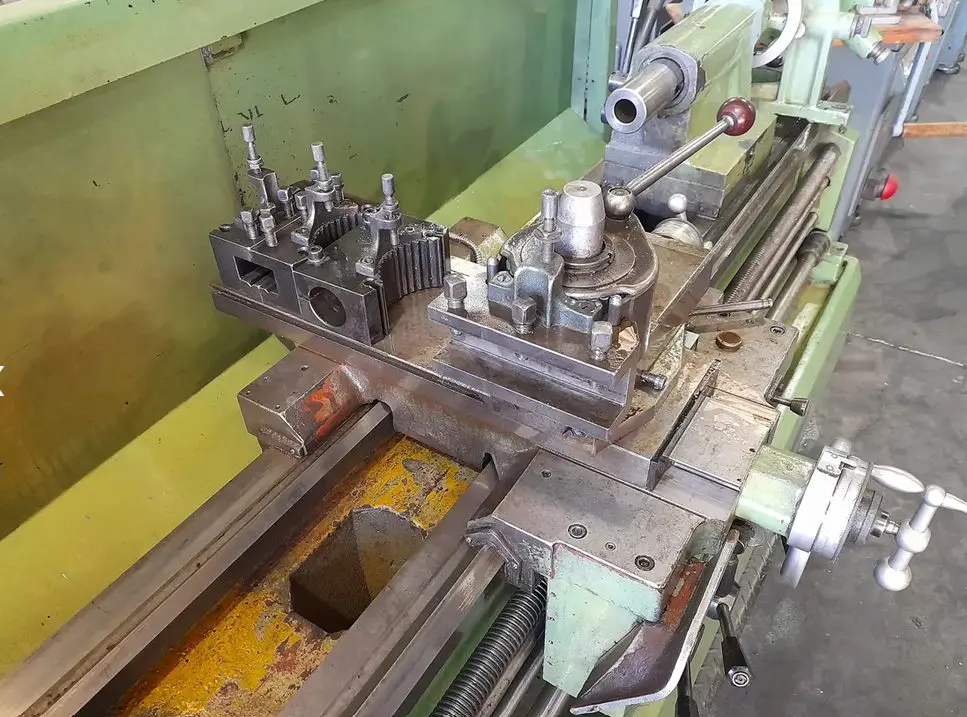

• Quick change tool post
• Fixed Steady
• Travelling Steady
• Thread Chasing Dial
• Foot Brake Pedal tested & working
• Coolant System, can be heard running
