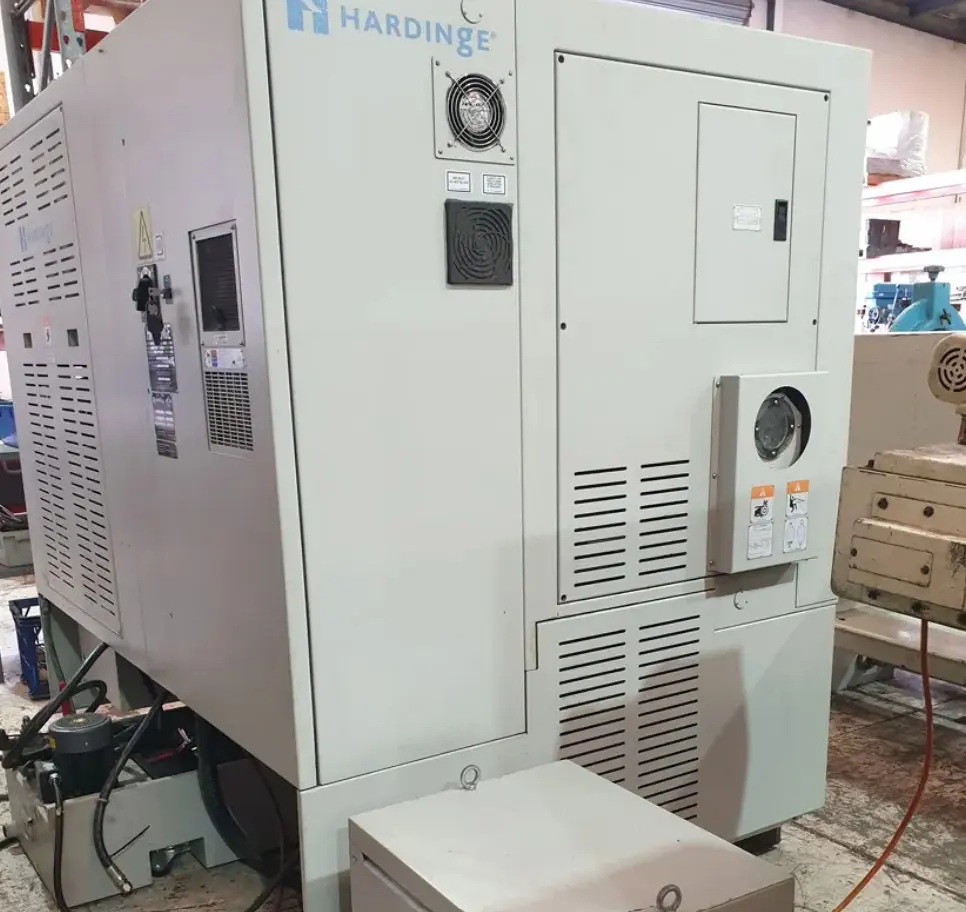

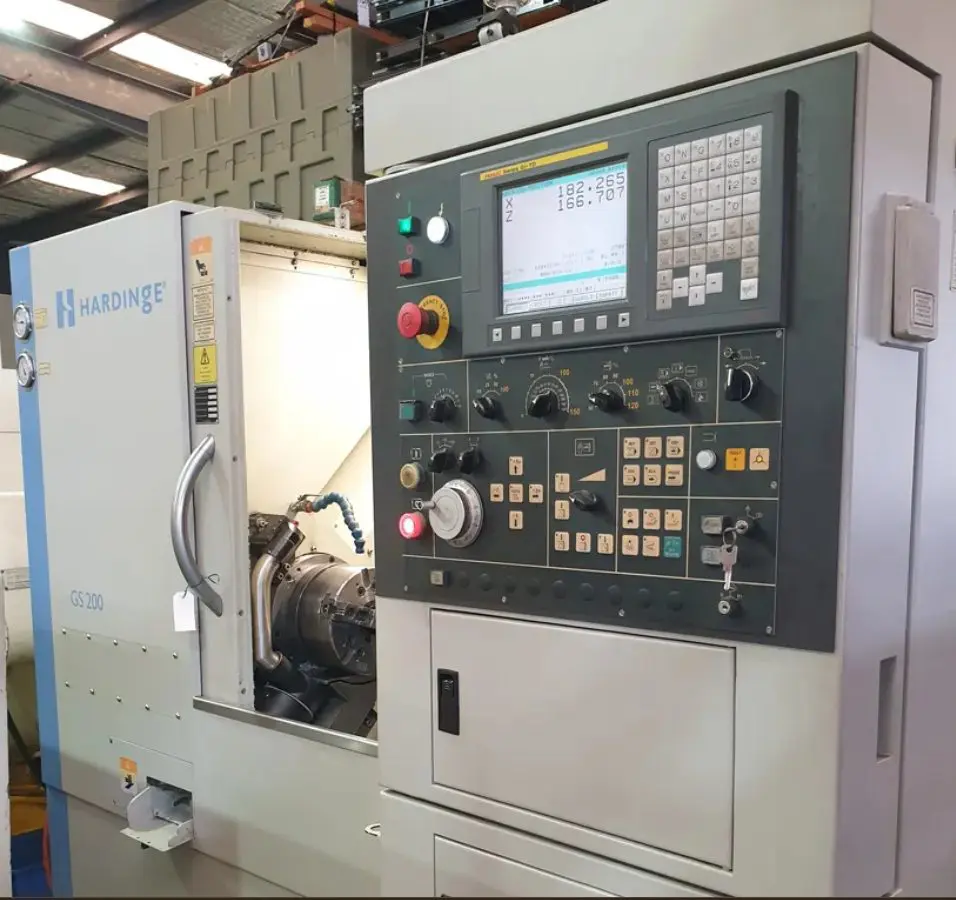

Hardinge GS 200 CNC Lathe TRT#42

Description

We have, in excellent condition, a Hardinge GS200 CNC lathe for sale. Hardinge is a well-established American precision lathe manufacturer, long recognised for accuracy and build quality in toolroom and production turning applications.

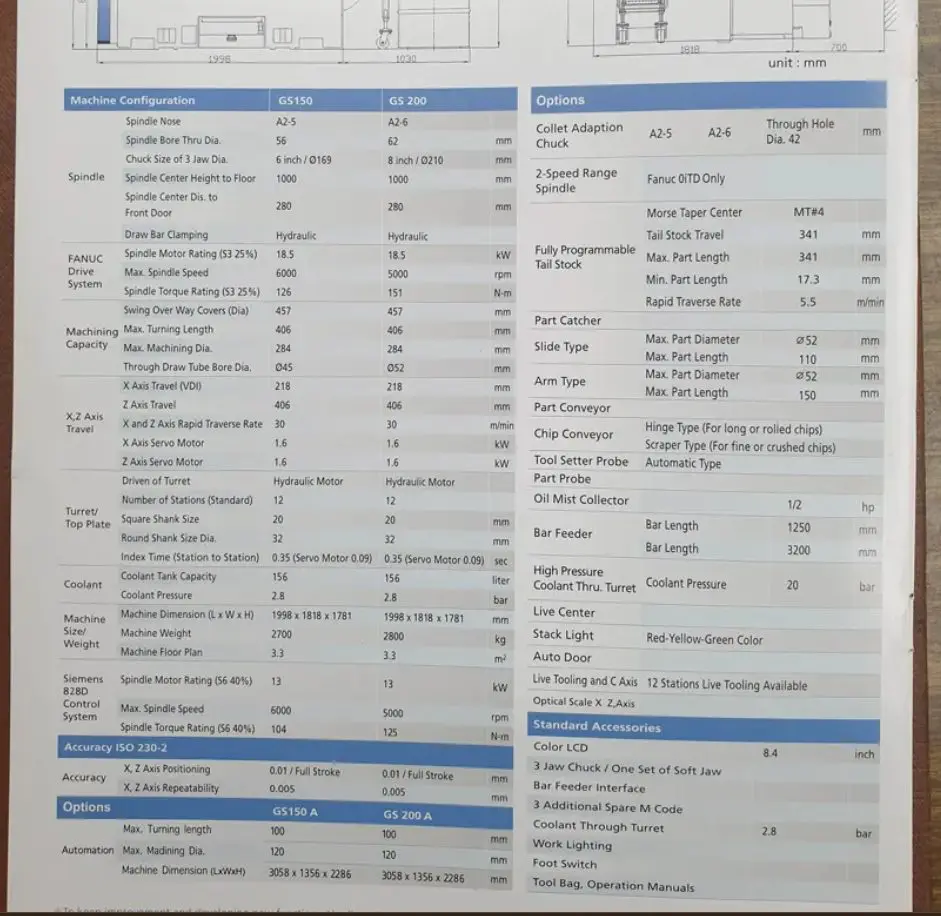

Specifications are as follows

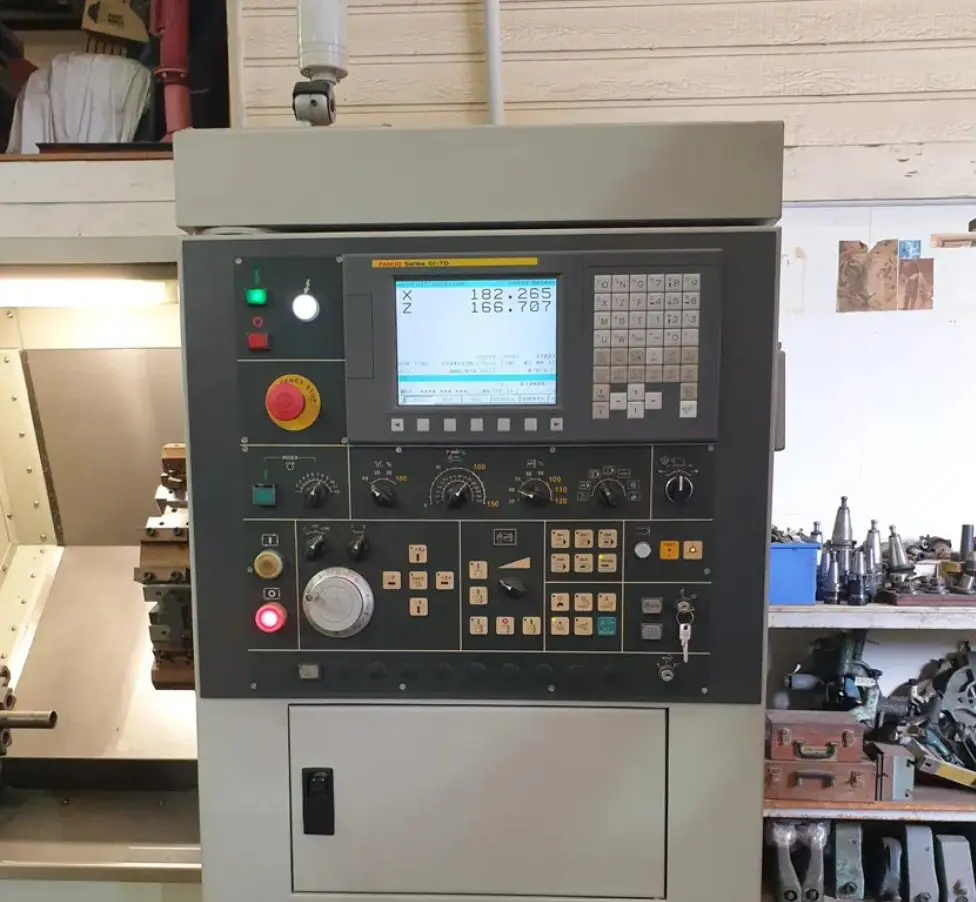

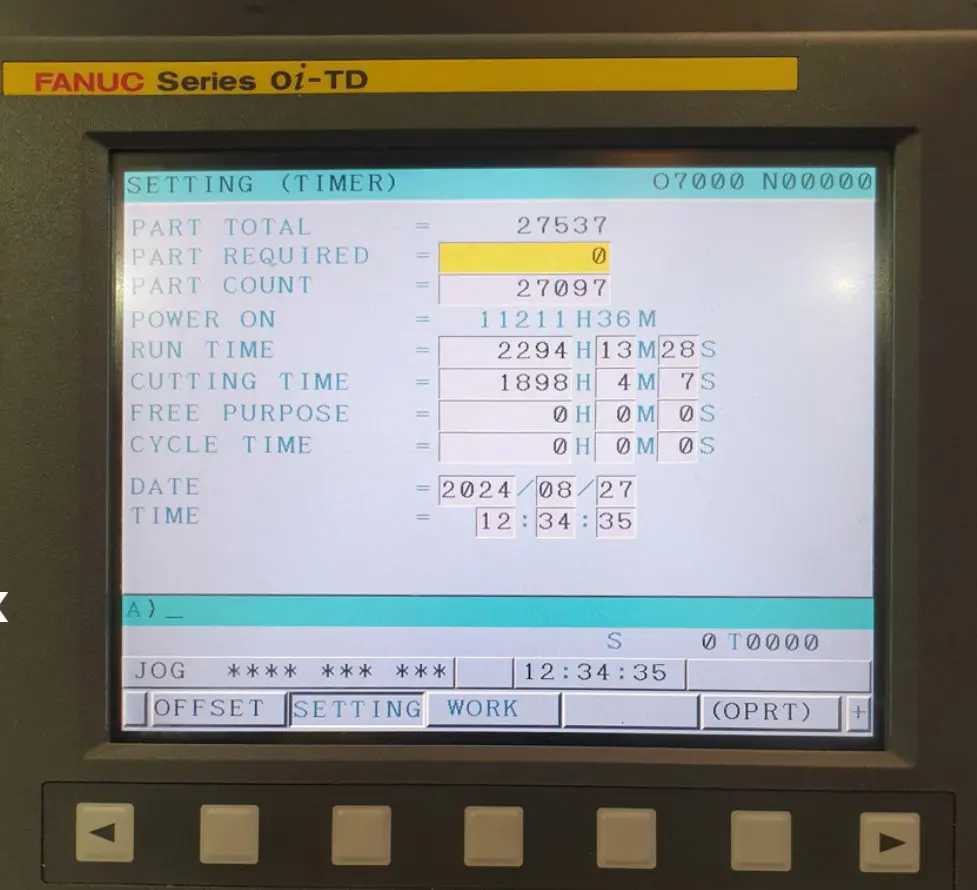

• Control Fanuc Series Oi-TD
• Spindle nose A2-6
• Max Spindle speed 5000 rpm
• Main motor 18.5kw
• Max turning dia 284mm
• Max turning length  406mm
• Drawtube Bore Diameter 52mm
• Supply voltage needed 415 volt
• Overall dimensions Machine  2.0m x 1.53m x 1.85m high.
• Weight of Machine 2.8 tonne
• Coolant Tank dimensions 1.7m x 0.55m x 0.5m High – Weight 100kgs
• Transformer dimensions 0.55m x 0.45m x 0.53m High – Weight 150kgs
• Chip Conveyor dimensions 2.3m x 0.4 m x 1.65m High – Weight 200kgs
• Year of Manufacture 2011

Accessories included

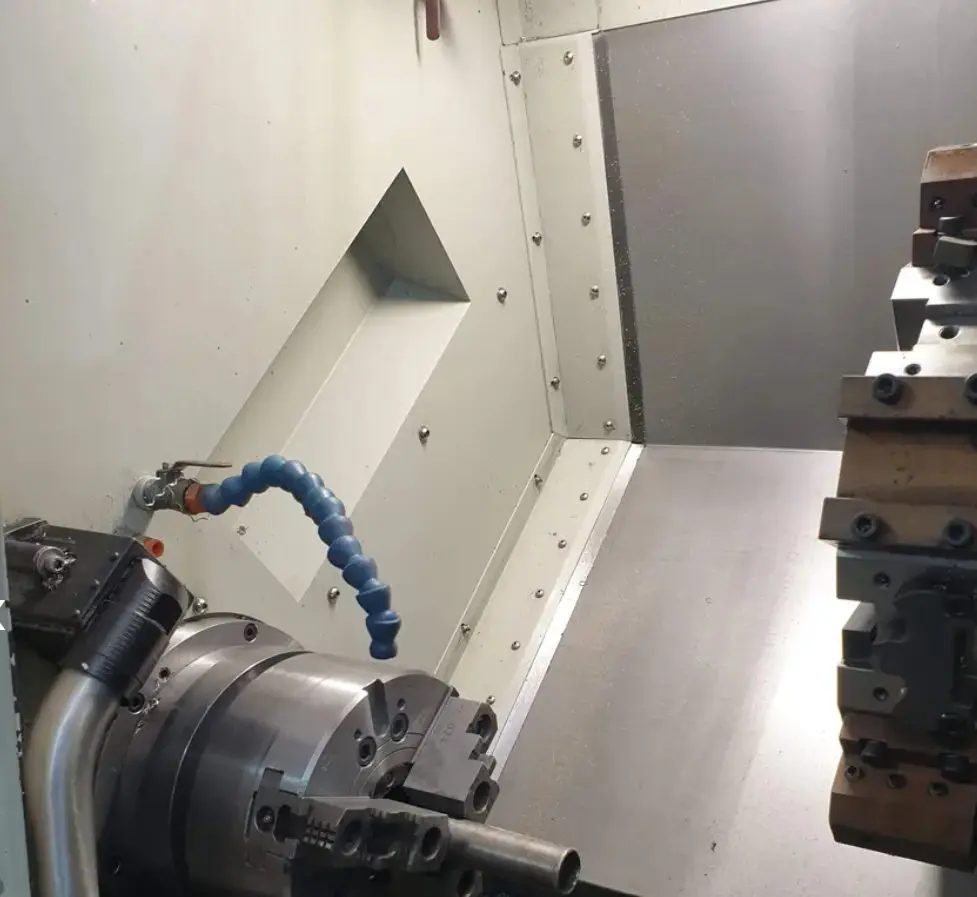

• 200mm 3 Jaw Hydraulic Chuck
• Collet chuck takes B60 Index Style  Collets
• Tailstock
• Chip Conveyor

Features

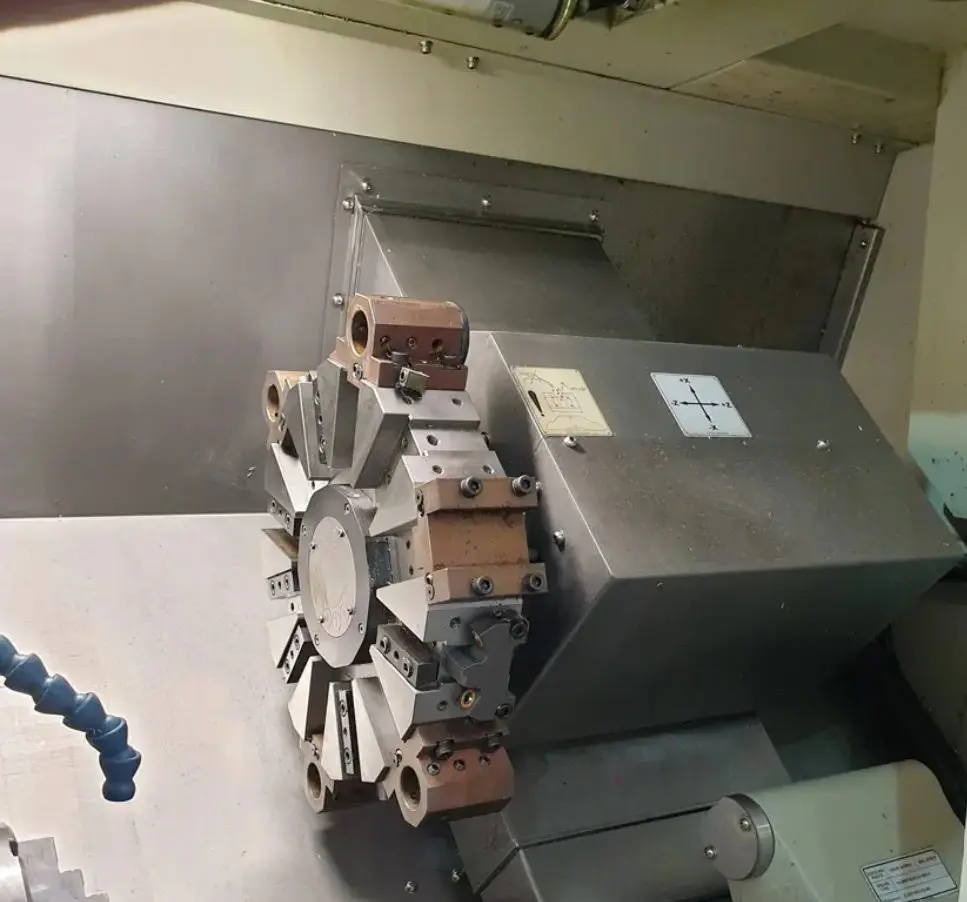

• 8 station tool turret
• Coolant system
• Worklight
