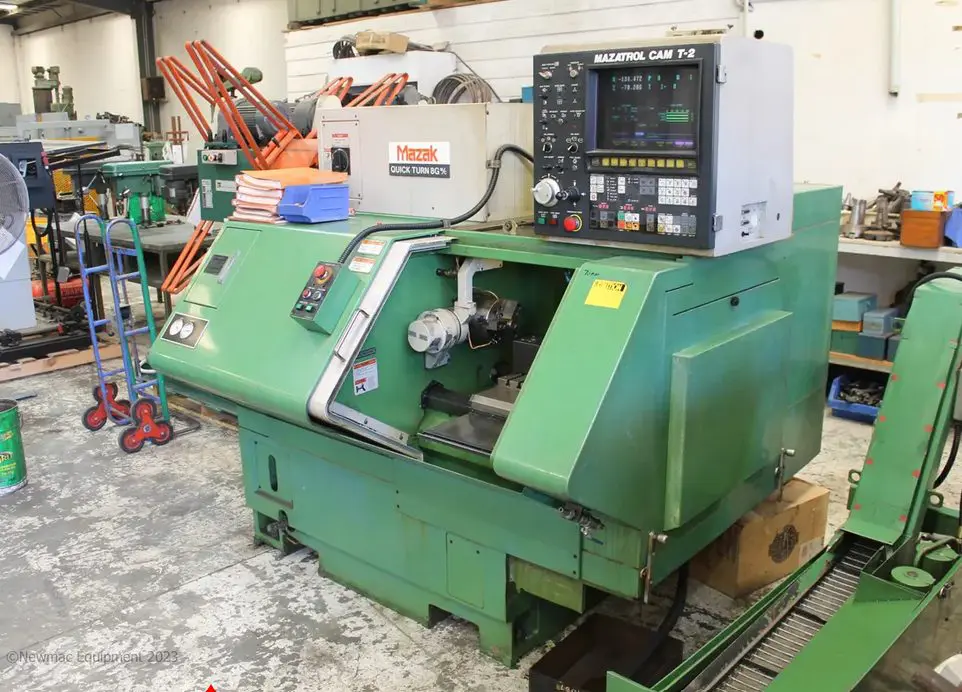

Mazak Quick Turn 8G CNC Lathe TRT#46

Description

• Spindle nose A2-5″
• Max spindle speed 4500
• Main motor 10hp
• Distance between spindle nose & tool holder 145mm to 448mm
• Standard cutting dia. 100mm
• Max cutting dia. 160mm
• Max bar material cutting dia. 32mm
• Max length of work 160mm
• Max chuck work capacity 25kgs
• Hole dia. through spindle 50mm
• Weight 2.85 tons
• Overall dimensions, Main machine 1850mm x 1700mm x 1900mm high
  Chip conveyor 2200mm x 500mm x 1150mm high

Features & comes with the following accessories

• Built-in tool setter

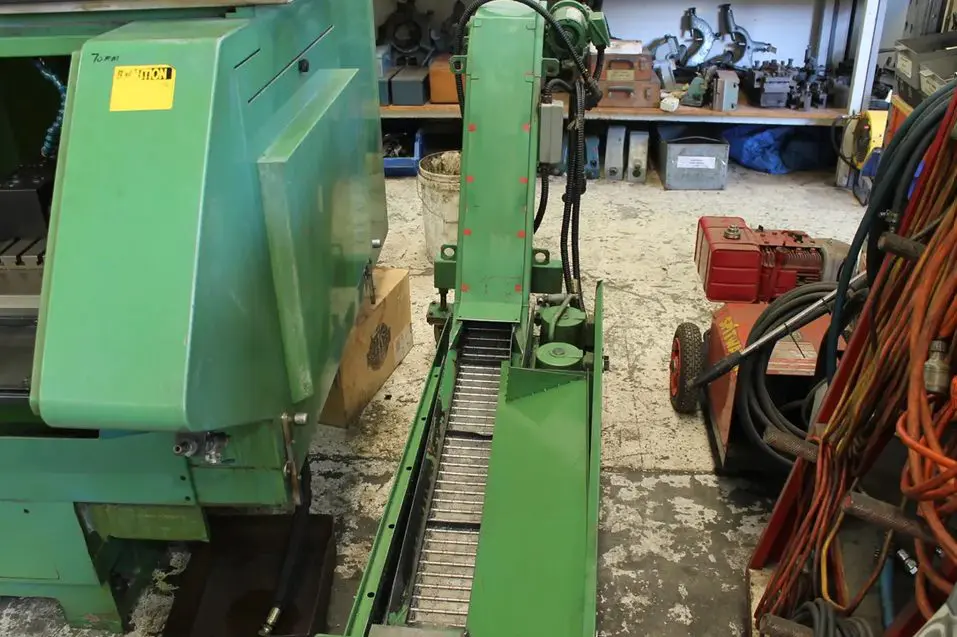

• Chip conveyor
• Coolant system
• Work light
• Gang-type tool post
