Hartford HV 60A Vertical Machining Centre TRT#39
$22,500.00 +GST
Solid 3 axis VMC
Working order – can be seen under power
Available now ex Melbourne
Description
- X Axis travel 1400 mm
- Y Axis travel 680 mm
- Z Axis travel 600mm
- CNC control Fanuc OM
- Table length 1500 mm
- Table width 630 mm
- Spindle taper BT50
- Max. spindle speed 4,000 rpm
- Spindle motor power 15 kW
- Power requirements, 3 phase, 415 volt
- Year of manufacture 1994
- Weight 12,000 kg
- Overall dimensions 3,920mm x 2,700mm x 2,940mm (High)
- Chip Conveyor Dimensions 2500 x 310 x 1700 High – Weight 300kgs
- Hydraulic Tank, Spindle Chiller on Pallet 1200 x 1200mm High – Weight 300Kg
- Coolant Tank 1500mm x 800mm x 400mm High – Weight 150kg
- Comes with/accessories
- Chip conveyors
- Work light
- 24 position ATC
- Transformer

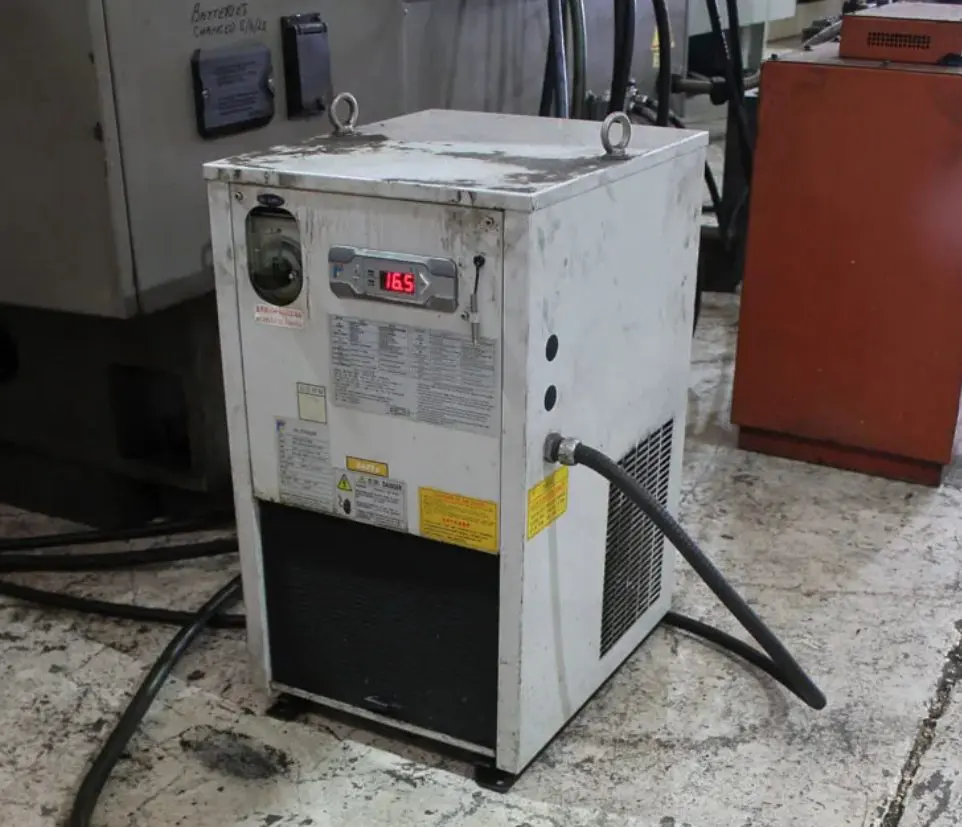

- Spindle Cooling Unit
