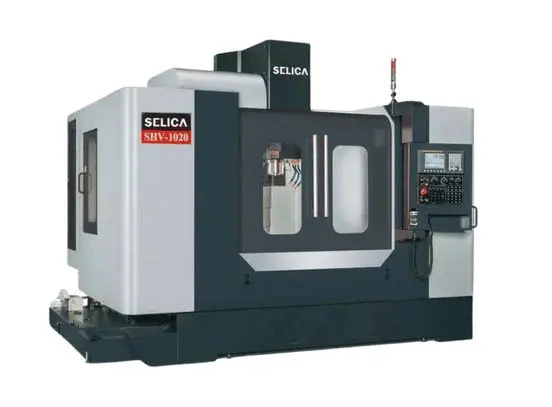

Selica SHV-1020 3 axis machining center TRT#36

Description

MACHINE MODEL : SHV-1020
Selica 3 axis CNC Vertical Machining Center – with upgrades included

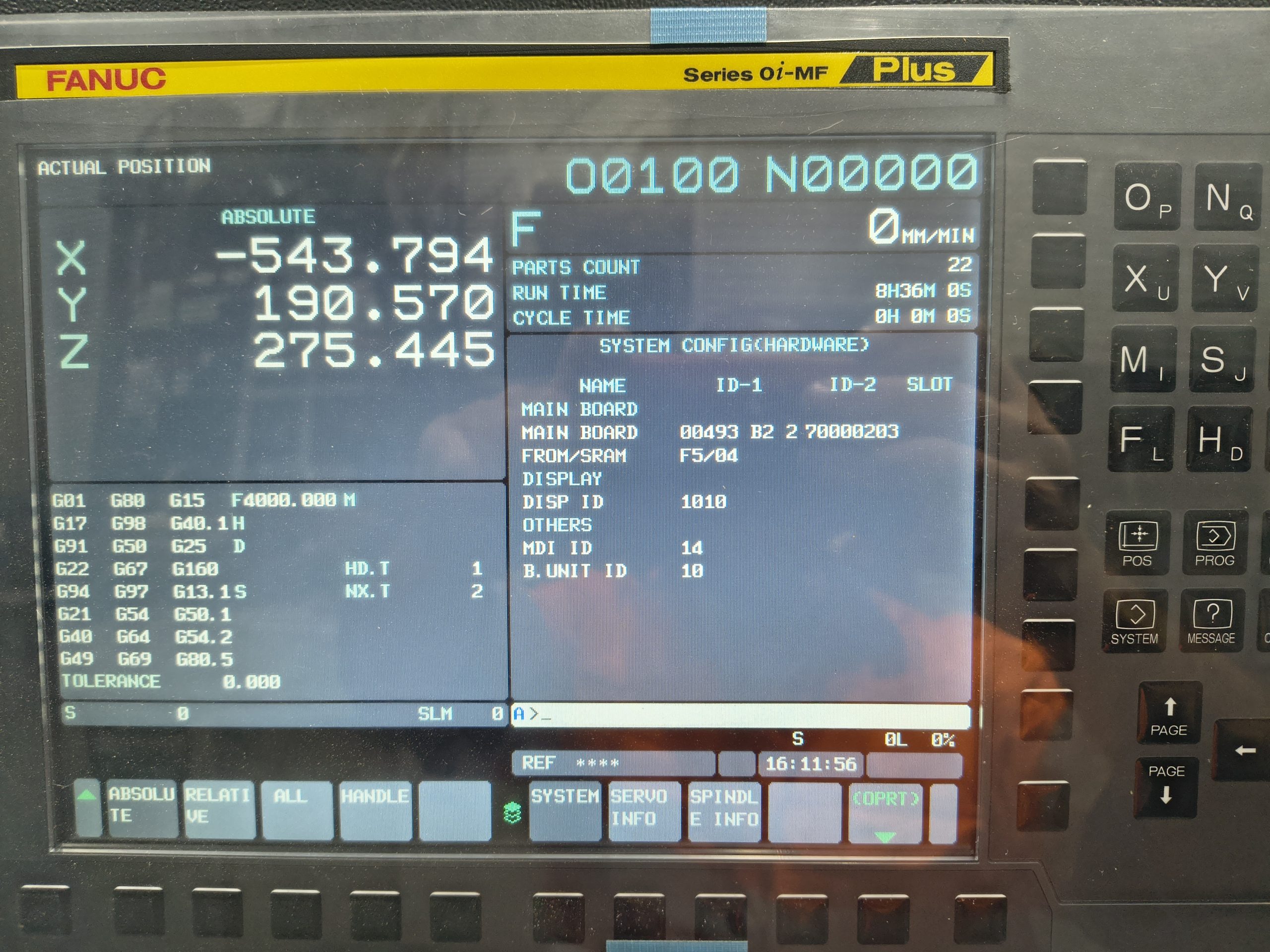

1 FANUC 0i-MF plus 10.4″ LCD, AICC 2

Specification:

1. X,Y,Z axes travel: 1020 x 600 x 580 mm
2. Table size(L x W): 1190 x 580 mm
3. Max table loading: 800 kg
4. T-slot: 4 x 18 x 125 mm
5. Spindle nose to table surface: 120 ~ 700 mm
6. Spindle taper: BT40
7. Spindle speed: 10,000 rpm (belt type)
8. Spindle motor upgraded to 11/15kw/ β12 10000rpm
9. Ball screw: C3, Ø40 mm. * pitch: 10 mm
10. Rapid traverse(X/Y/Z): 30/30/24 M/min.
11. Roller-Type Linear Rails, 35/ 45/ 45 mm width
12. Cutting feed rate: max 15 M/min.
13. Servo motors: 1.8/ 1.8/ 3.0KW(β12/β12/β22B)
14. Magazine: arm type 24+1 tool (BT40)
15. Max. tool length: 250 mm
16. Max. tool diameter: 75 / 150 mm
17. Max. tool weight: 7 kgs
18. Machine weight: 6,800 kgs
19. Floor space: 3450 x 2650 x 2920mm 20 Power 20kVA (~28Amps @ 415V)

Standard accessory:

1. Spindle cooling system
2. Full enclosed splash guard
3. Coolant system
4. Heat exchanger for electrical cabinet
5. Auto power off
6. Auto lubrication system
7. Screw type chip conveyor + cart
8. Air blast of spindle
9. Work lamp + call light
10. Tool box
11. Three axes telescopic cover
12. Rigid tapping
13. Manual book & electrical drawing
14. USB port + one of MPG
15. Transformer

Included Optional accessories

1. Rear coolant flushing device
2. Disc type oil skimmer
3. Coolant through spindle 30 bar
4. 4th axis preparation
5. Roller type linear guideway
6. CE electrical spec

Optional : Tschorn tool and part measurement probe
