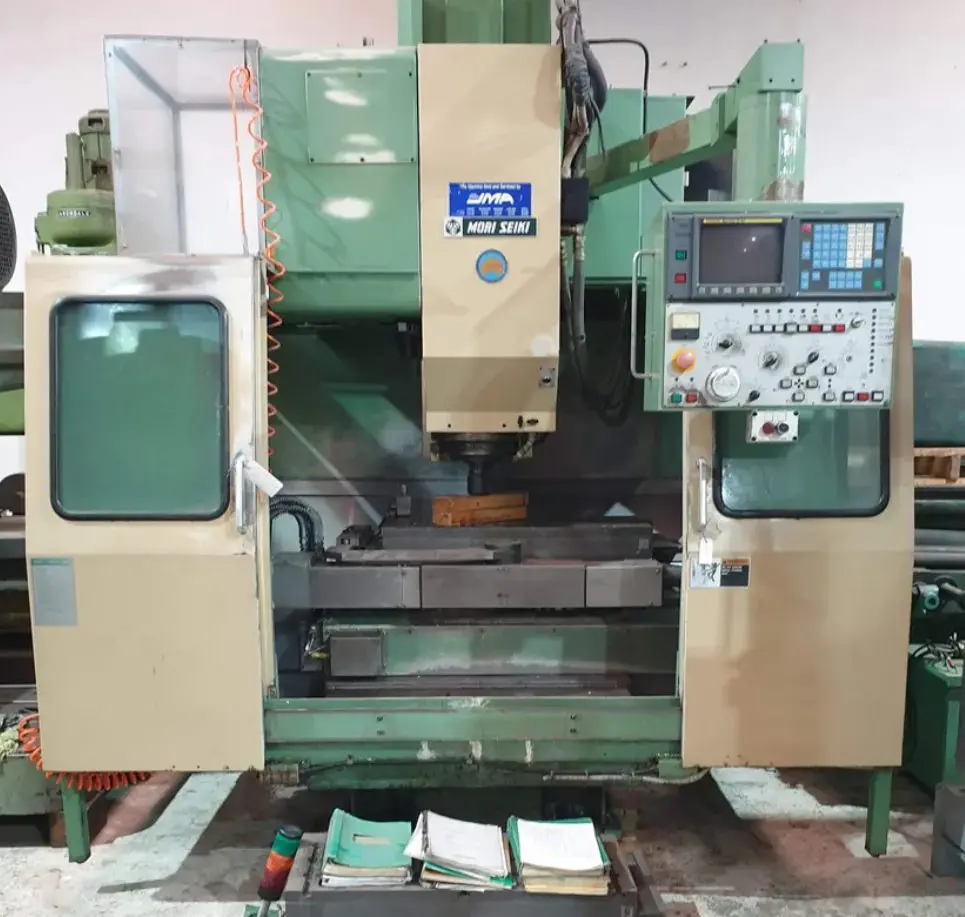

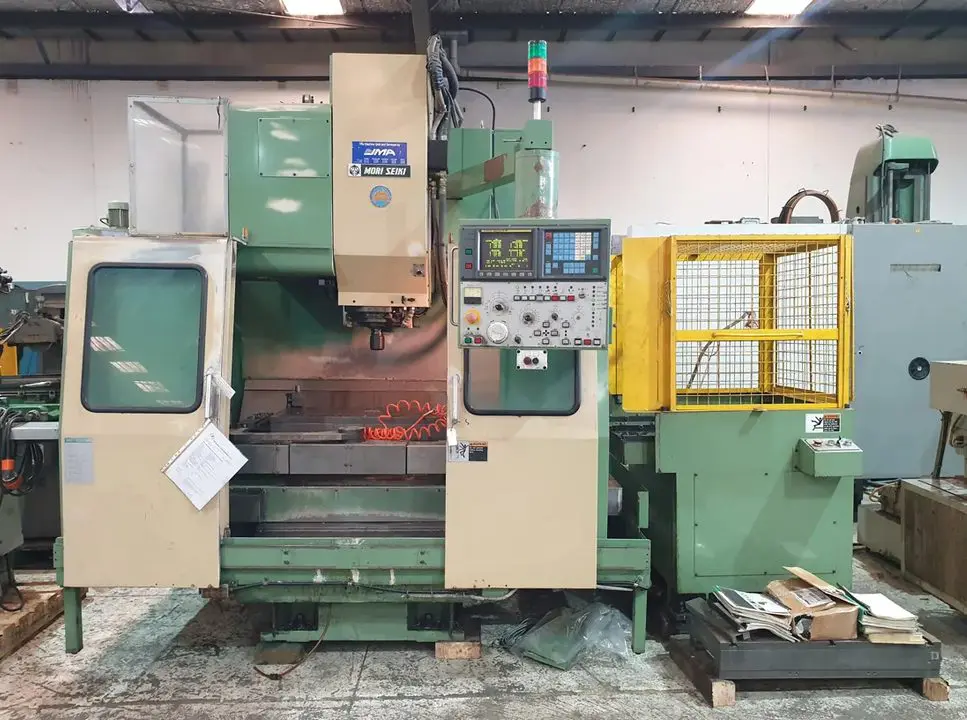

Mori Seiki MV40A Twin Pallet VMC TRT#40

Description

• Pallet size 380mm x 700mm
• X/Y/Z travel 600mm x 410mm x 510mm

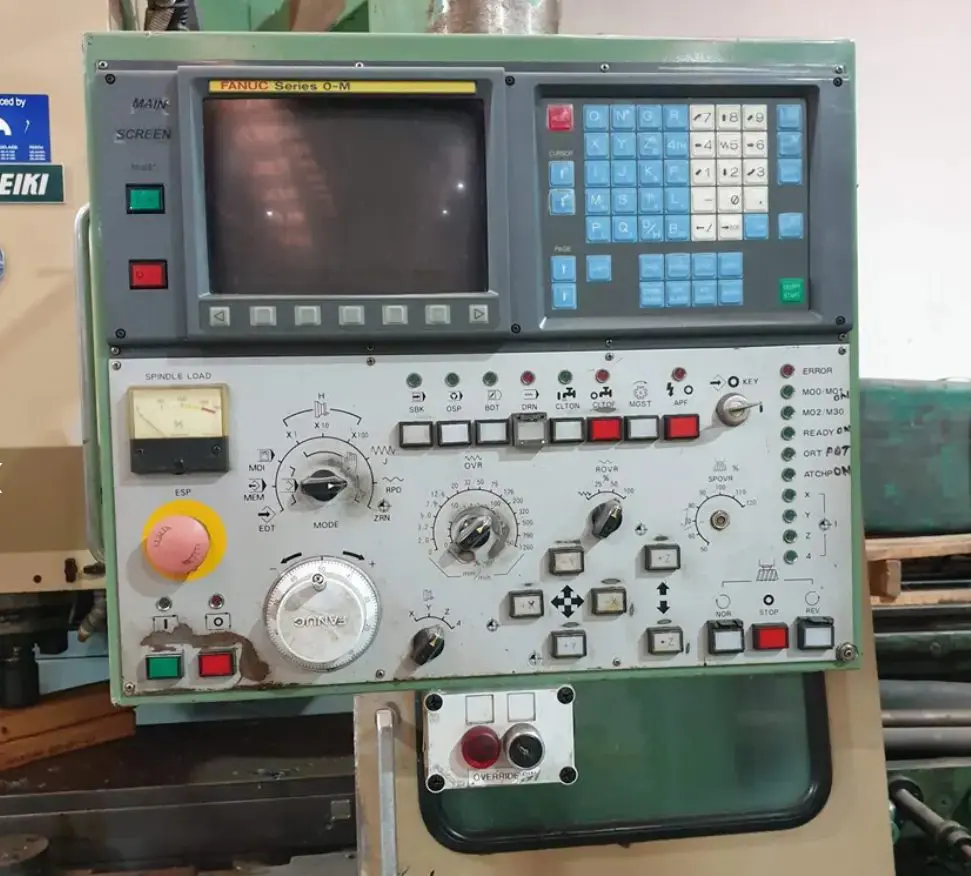

• Control Type Fanuc Series OM
• Max spindle speed 8,000rpm
• Spindle taper BT 40
• Max programmable Feed Rate 5m/min X/Y/Z
• Rapid Feed Rate 20m/min X/Y
• Rapid Feed Rate 15m/min Z
• Max Pallet Load 300kgs
• Number of tools that can be held in the tool carousel 20
• Spindle Motor Hp/Kw 5.5hp, 7.5kw 30 min rating
• Flood type coolant System
• Machine power requirements 3 phase 415 volt
• Stroke for pallet 947.7mm
• Pallet Change Time 12 seconds
• Machine Dimensions for Transport, including control cabinet 2,500m wide x 2,260mm front to back x 2,650 mm high
• Machine Weight Approx. 6.5 tonne

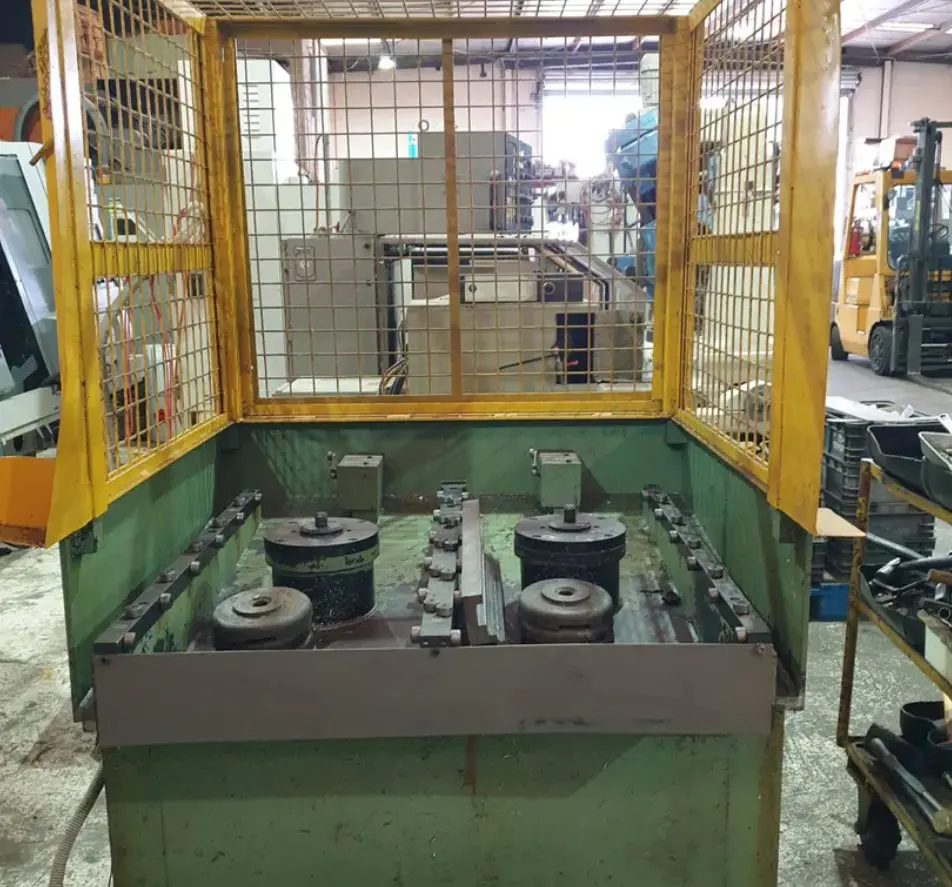

• Pallet Changer Dimensions for Transport 1,030mm x 1,110mm x 1,900mm High
• Pallet Changer Weight 550kg
• Pallet Dimensions 1,000mm x 390mm x 150mm High
• Transformer Dimensions for Transport 530mm x 650mm x 520mm High
• Transformer Weight 300kgs

Accessories

• 10 x BT40 Tooling
• 2 x Pallets
• Spindle Chiller
• Coolant System
• Worklight
• Transformer
• Machine Manuals
