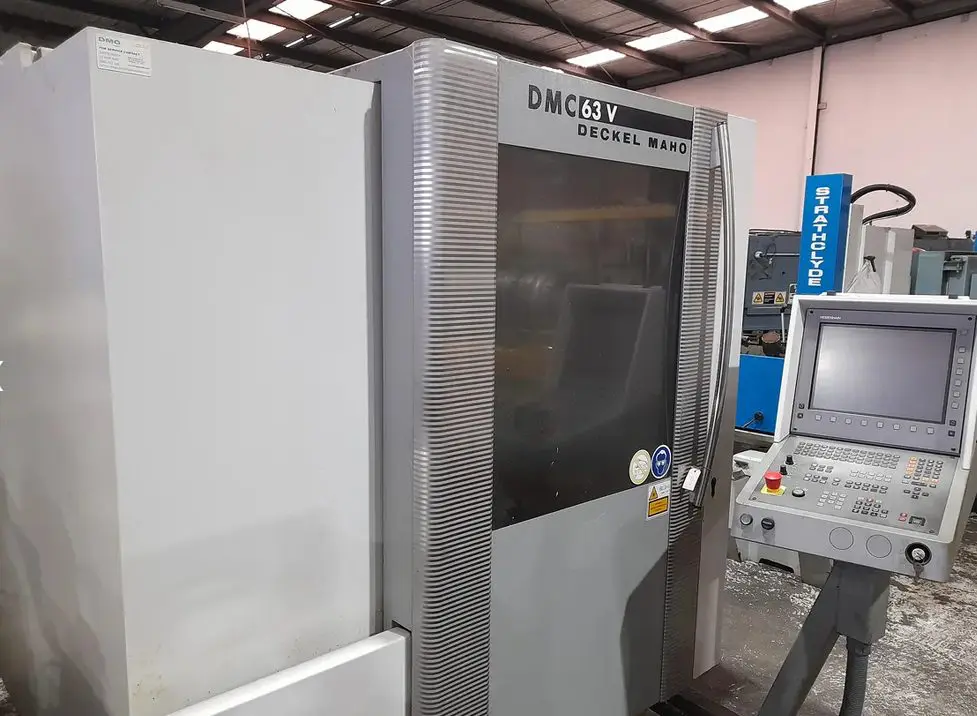

Deckel Maho DMC 63V VMC TRT#44

Description

Deckel Maho is a well-regarded premium German machine tool brand, and this machine is fitted with a Heidenhain control — itself widely respected for precision and reliability. It’s also equipped with a BLUM laser system for automatic tool setting and tool breakage detection, a genuinely useful feature for unattended or high-precision production work.

Technical Data Snapshot

• Made in Germany
• Year of manufacture 2003

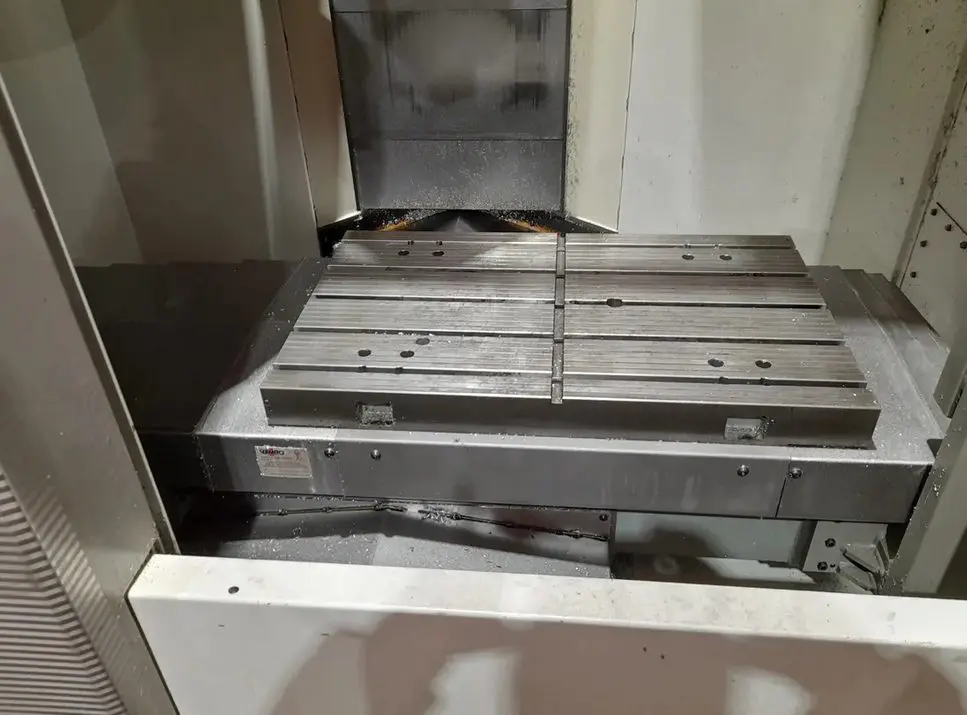

• Table size 800mm x 500mm
• X/Y/Z travel 630mm x 500mm x 500mm

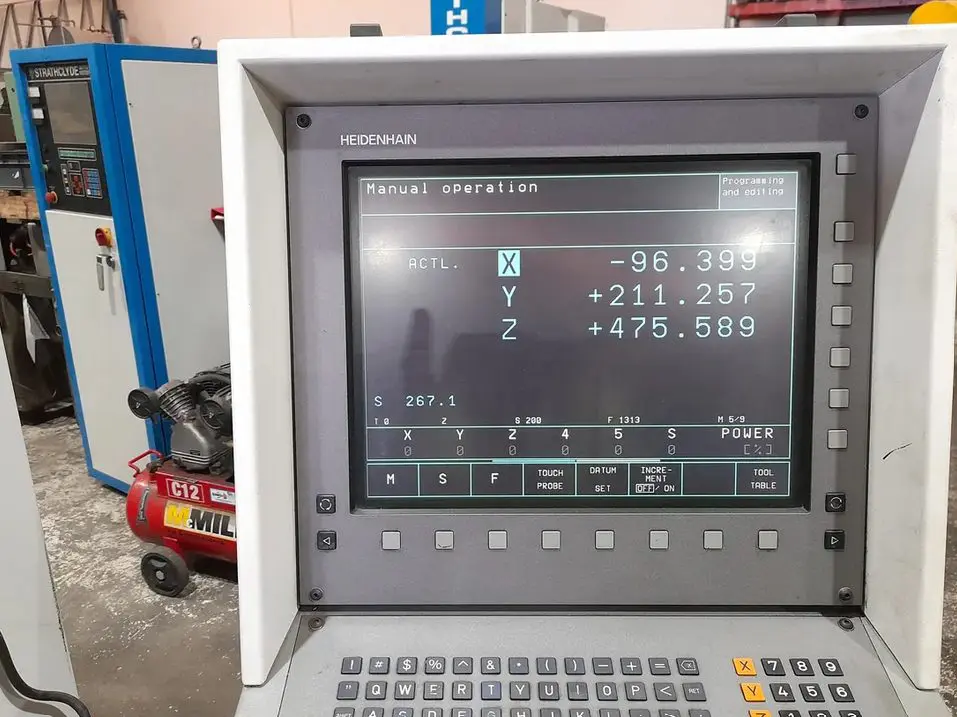

• Control Type Heidenhain
• Max spindle speed 10,000rpm

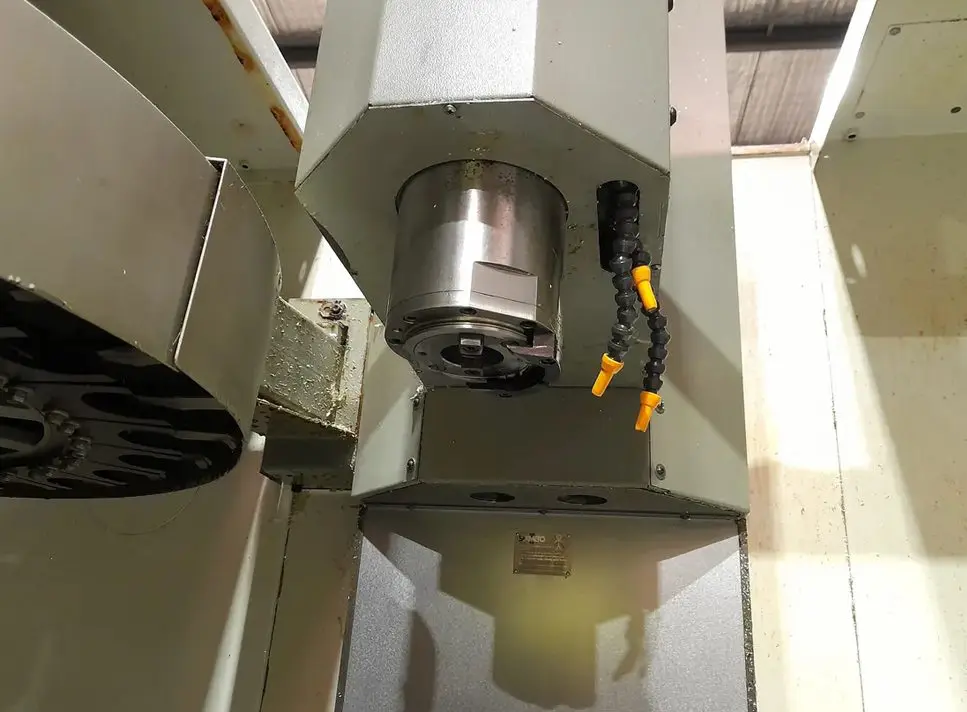

• Spindle taper ST 40
• Max programmable Feed Rate 30m/min
• Rapid Feed Rate 30m/min
• Max Table Load 500kgs
• Number of tools that can be held in the tool carousel 24
• Spindle Motor Hp/Kw 17.5hp, 13kw
• Machine power requirements 3 phase 415 volt
• Machine Dimensions for Transport, including control cabinet 2m wide x 3m front to back x 2.3m high
• Weight Approx. 5 tons
• Flood type coolant System

Accessories

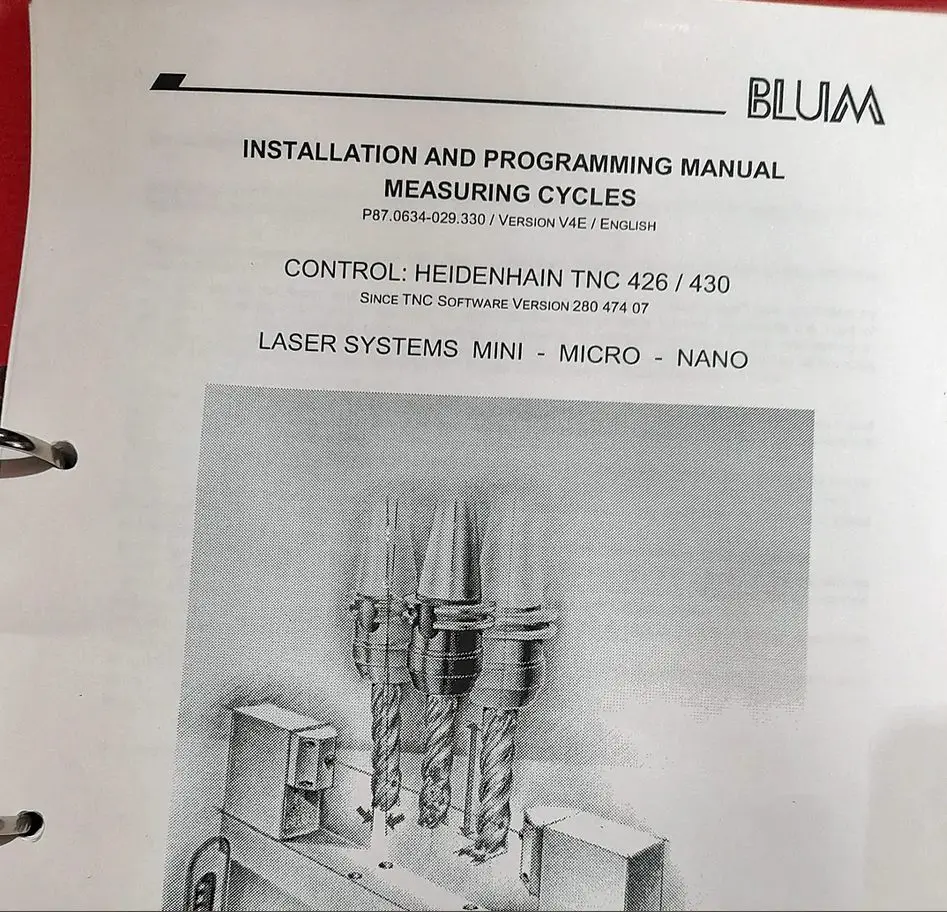

• BLUM laser system for tool setting & tool breakage detection. See photo for more info
